Lighting System

16-100prose procedure

Lighting Switch Replacement

  1. 1
    Remove the lower and upper covers from the steering column.
  2. 2
    Disconnect the 7-P and 4-P connectors.
  3. 3
    Remove the 2 screws and slide the lighting switch out of the housing as shown.
    Be carefull not to damage the steering wheel cover.

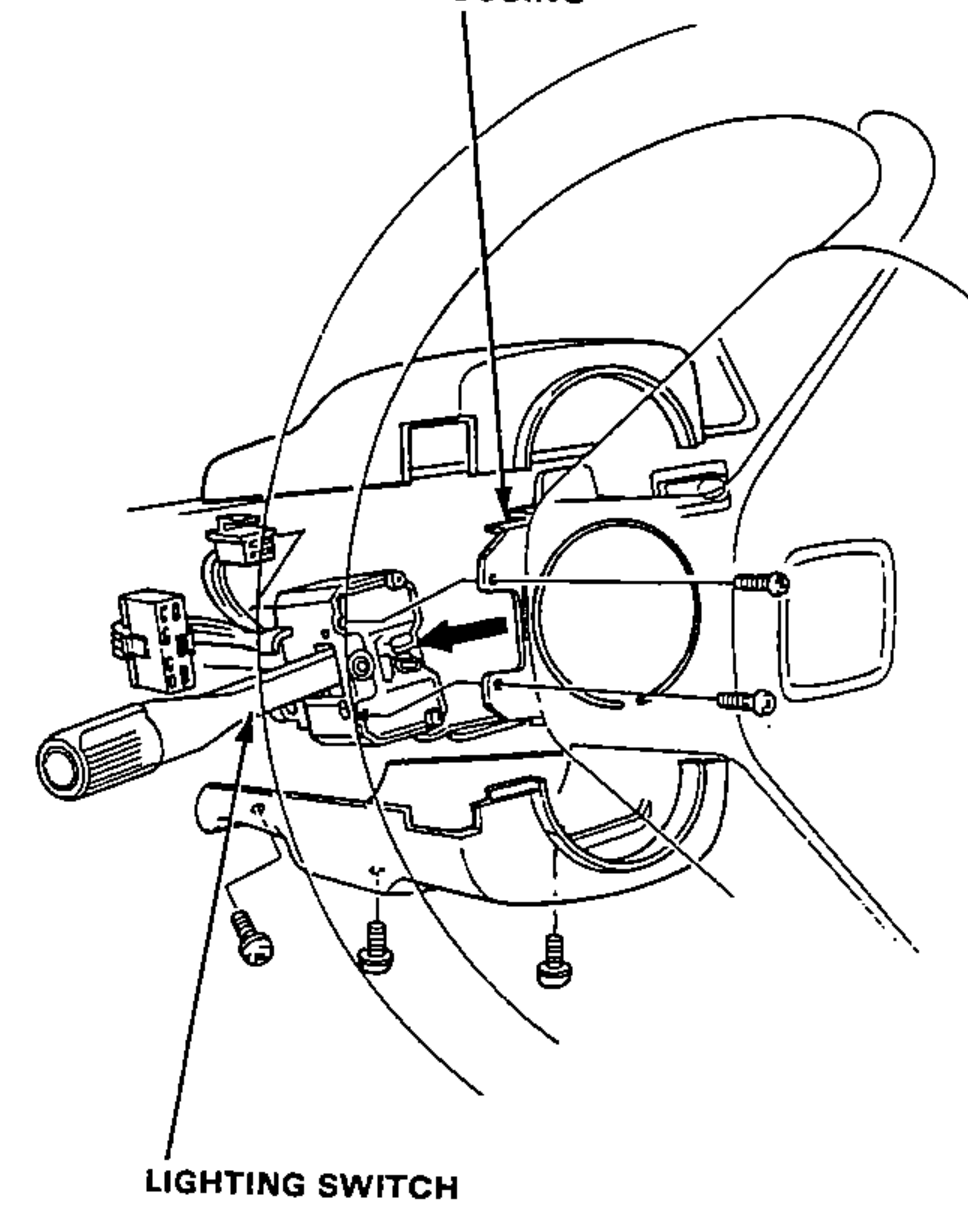

    Steering-column illustration showing removal of the lighting switch from the housing; an arrow indicates sliding the switch out. Screws are shown at the base of the column.

Dimmer Relay Test

  1. 1
    Remove the dimmer relays from the headlight units.
  2. 2
    There should be continuity between the A and C terminals when the battery is connected to the E and F terminals. There should be continuity between the B and C terminals when the battery is disconnected.

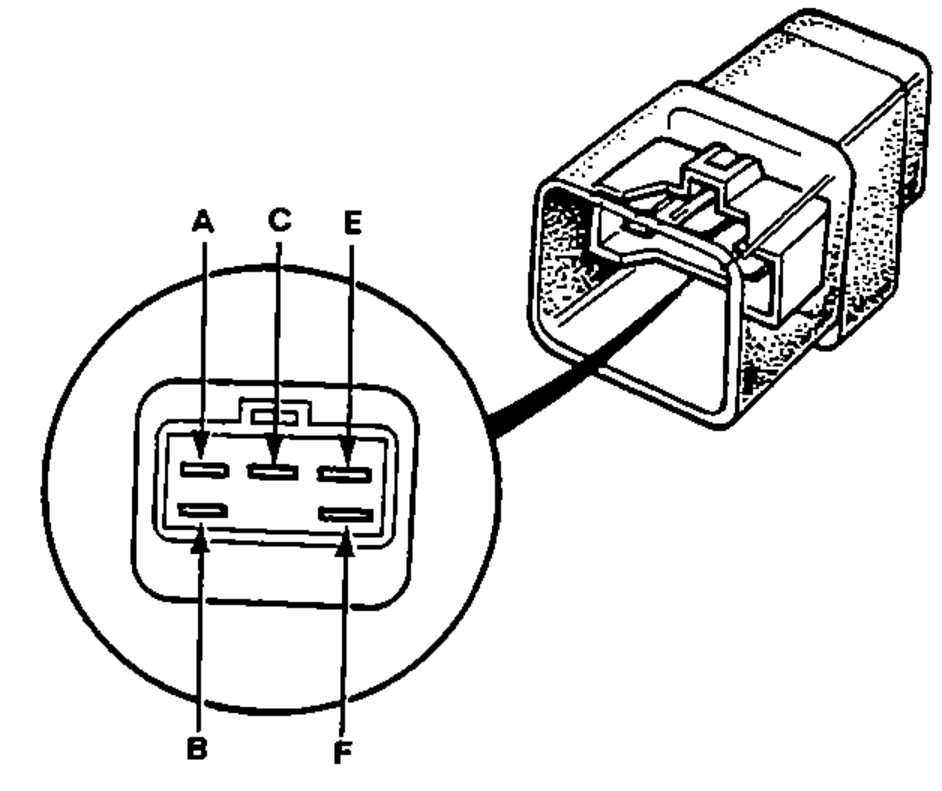

    Dimmer relay (headlight unit) shown with an enlarged circular terminal-side view of the 6-terminal connector. Top row terminals A, C, E; bottom row terminals B, F.
