Wipers/Washers - Washer Replacement

16-162prose procedure

Washer Replacement

  1. 1
    Remove the bumper, then remove the washer reservoir by removing the 4 mount bolts.

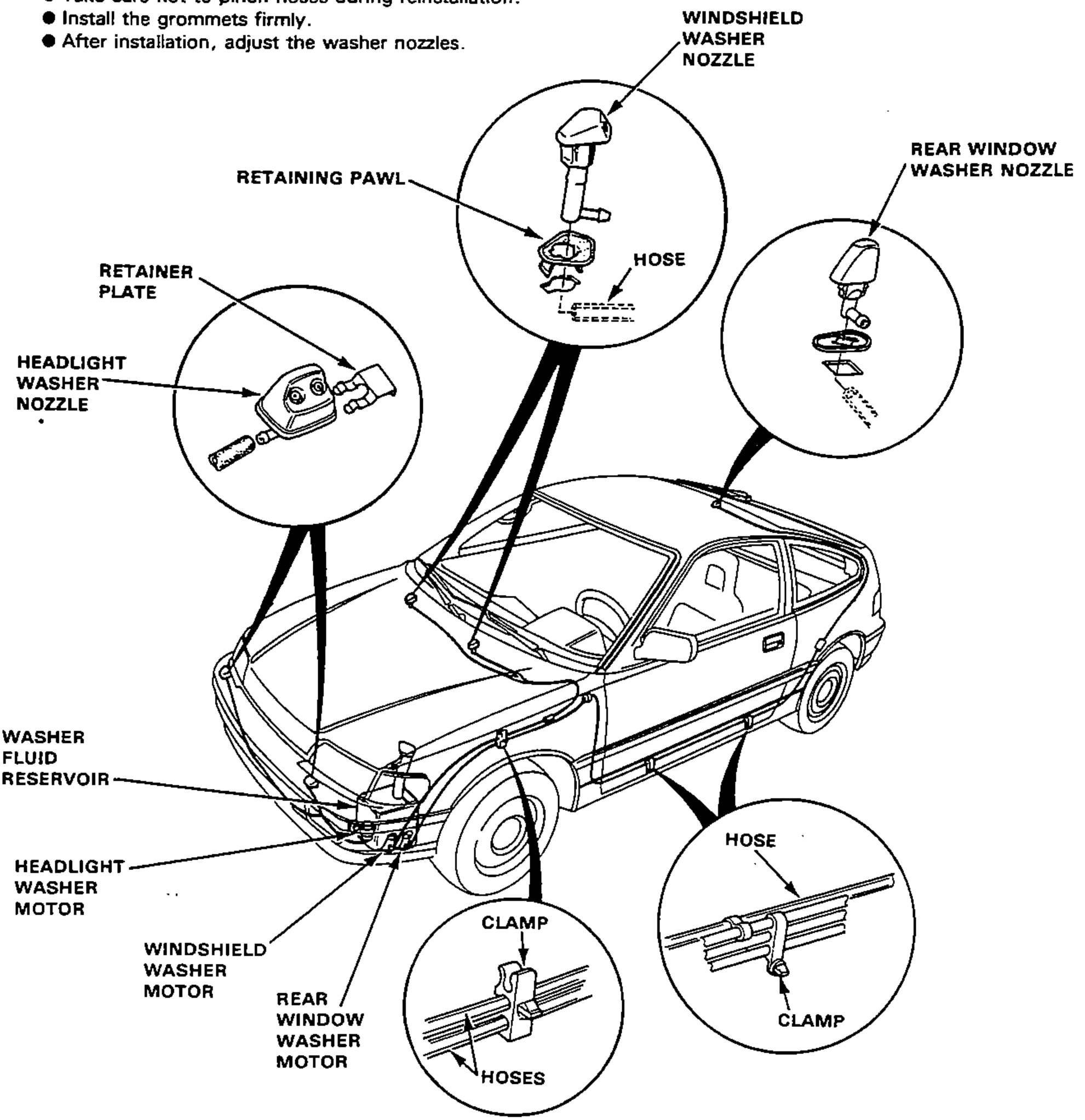

    Overall CRX illustration locating the washer system components on the car (windshield/rear window/headlight washer nozzles, washer fluid reservoir and the three washer motors), with detail circles for the windshield washer nozzle retaining pawl, rear window washer nozzle, headlight washer nozzle retainer plate, and hose clamp routing.
  2. 2
    Disconnect the hoses and the 2-P connectors from the windshield, rear window and headlight washer motors.
  3. 3
    Remove the washer nozzles;
    Clamp the hoses with the wire harness in the left front fender.
    Take care not to pinch hoses during reinstallation.
    Install the grommets firmly.
    After installation, adjust the washer nozzles.
