Ground and Wire Harness Routing

16-8component photo

Engine-compartment ground points G1 (right front inner fender) and G2 (radiator mounting bracket).

  1. 1

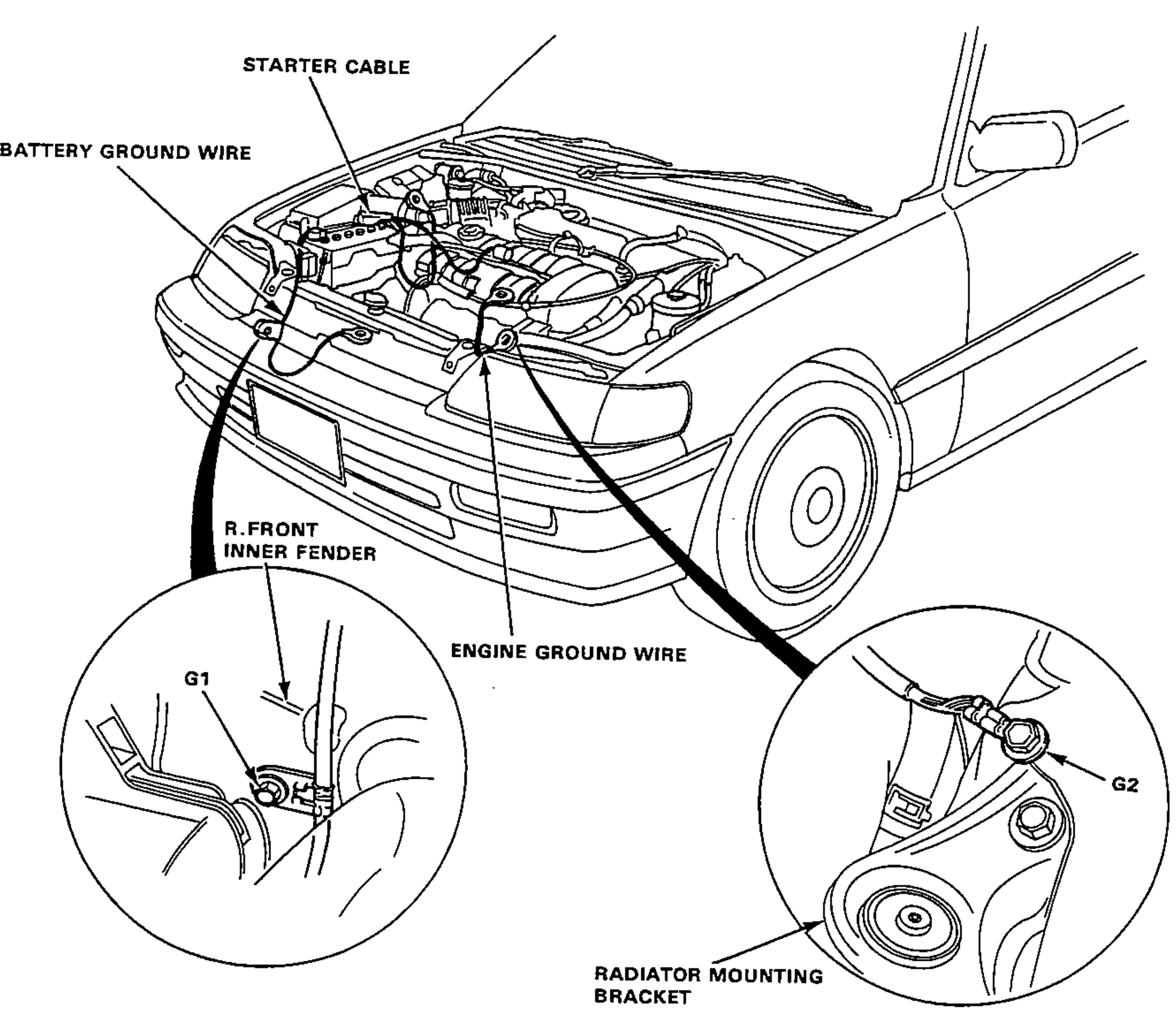

    Ground and wire harness routing in the engine compartment.
    Front three-quarter illustration of the engine compartment showing the routing of the starter cable, battery ground wire and engine ground wire, with two magnified circular detail views of the ground points: G1 at the right front inner fender and G2 at the radiator mounting bracket.
Component Location
1STARTER CABLE()
2BATTERY GROUND WIRE()
3ENGINE GROUND WIRE()
4G1()
5G2()
