Starting System - Starter Solenoid Test

16-36prose procedure

Solenoid terminal locations shown for the Mitsuba (1.4 kW) type starter.

Starter Solenoid Test

  1. 1
    Check the hold-in coil for continuity between the S terminal and the armature housing (ground). Coil is OK if there is continuity.

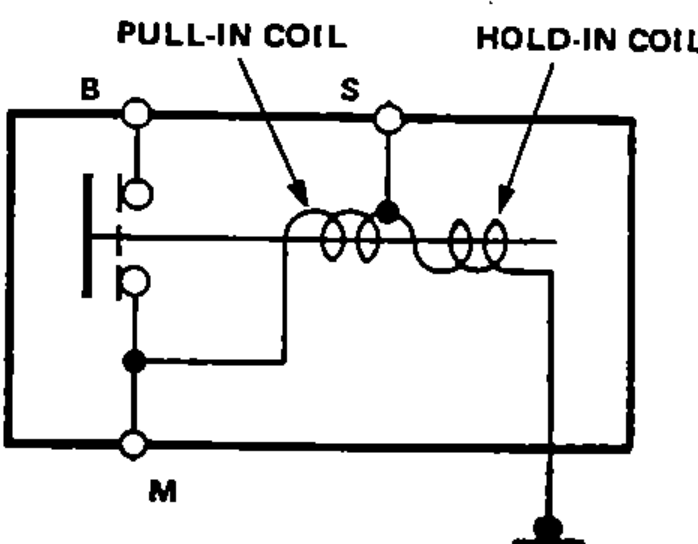

    Schematic of the starter solenoid coils showing the pull-in coil and hold-in coil and the B, S and M terminals. The pull-in coil runs between the S and M terminals; the hold-in coil runs between the S terminal and ground (armature housing).
  2. 2
    Check the pull-in coil for continuity between the S and M terminals. Coil is OK if there is continuity.

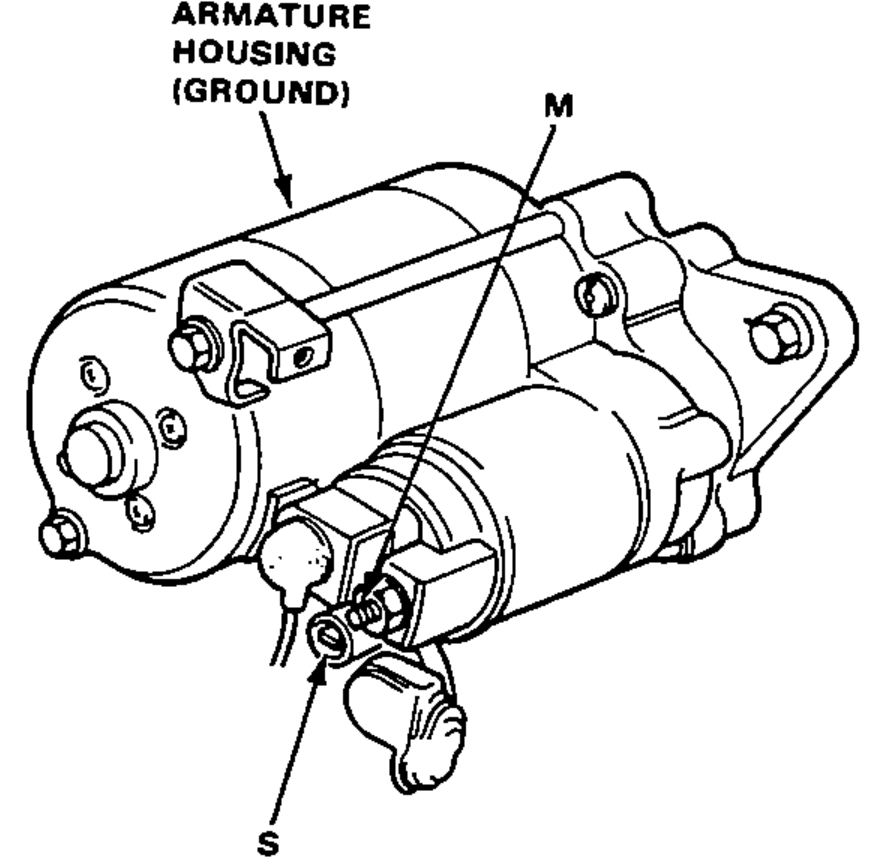

    Mitsuba (1.4 kW) type starter, showing the location of the S and M solenoid terminals and the armature housing (ground).
