Distributor Installation

16-49prose procedure
  1. 1
    Coat a new O-ring with engine oil then install it.

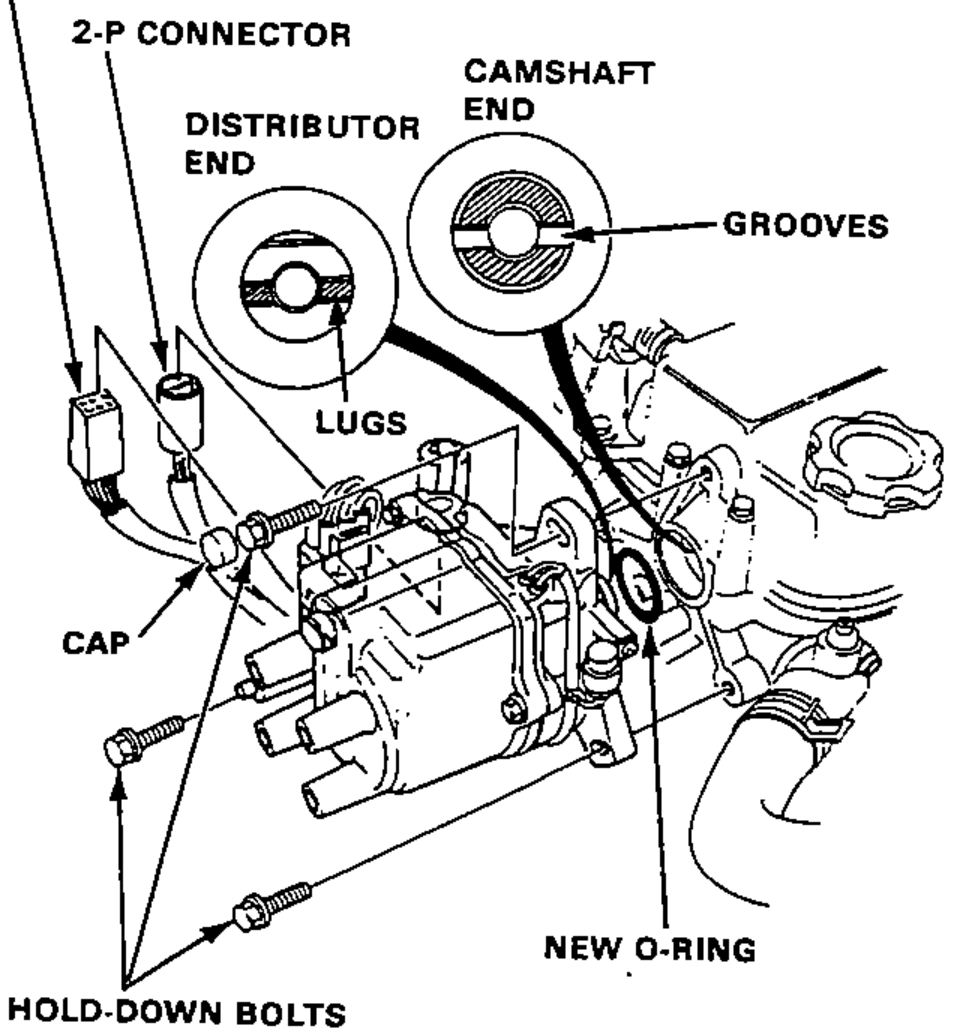

    Exploded/assembly view of the distributor being installed on the engine. Shows the distributor end and camshaft end with offset lugs and grooves, the electrical connectors, the new O-ring, cap, and the hold-down bolts.
  2. 2
    Slip the distributor into position.
    NOTE: The lugs on the end of the distributor and its mating grooves in the camshaft end are both offset to eliminate the possibility of installing the distributor 180° out of time.
  3. 3
    Install the hold-down bolts and tighten temporarily.
  4. 4
    Connect the 2-P and 6-P or 8-P connectors to the distributor.
  5. 5
    Connect the spark plug wires as shown.

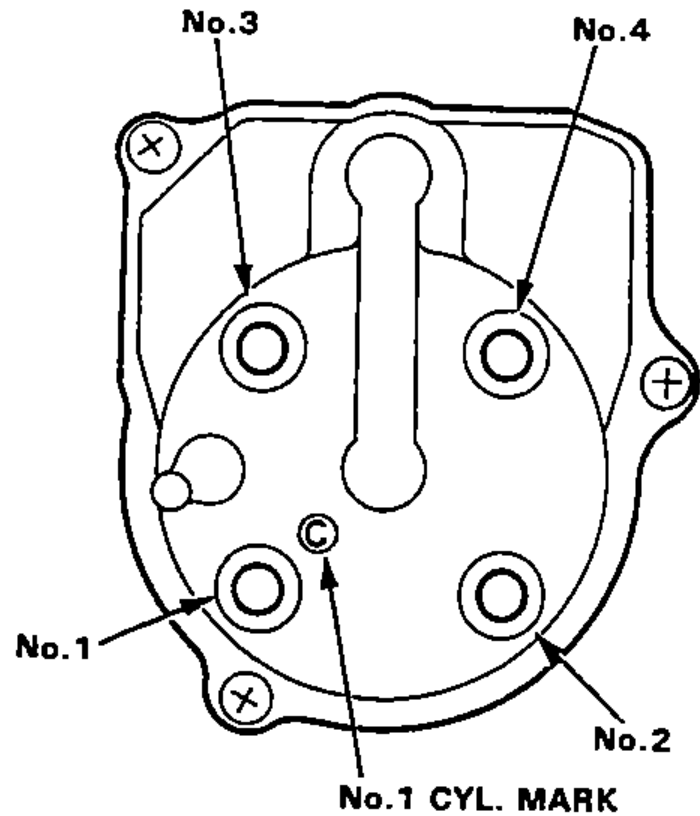

    Top view of the distributor cap showing the spark plug wire tower positions for No.1, No.2, No.3 and No.4 cylinders, and the No.1 CYL. MARK.
  6. 6
    Set the timing with a timing light as shown on page 16-47.
  7. 7
    After adjusting, tighten the hold-down bolts, then install the cap on the bolt.
Hold-down bolts
22N·m
