Ignition Timing Inspection and Setting
16-47prose procedureIgnition timing specs differ by engine: 1.6L SOHC with/without catalytic converter and 1.6L DOHC (KQ model vs except KQ model).
Ignition Timing Inspection and Setting
- 1Start the engine and allow it to warm up (cooling fan comes on).

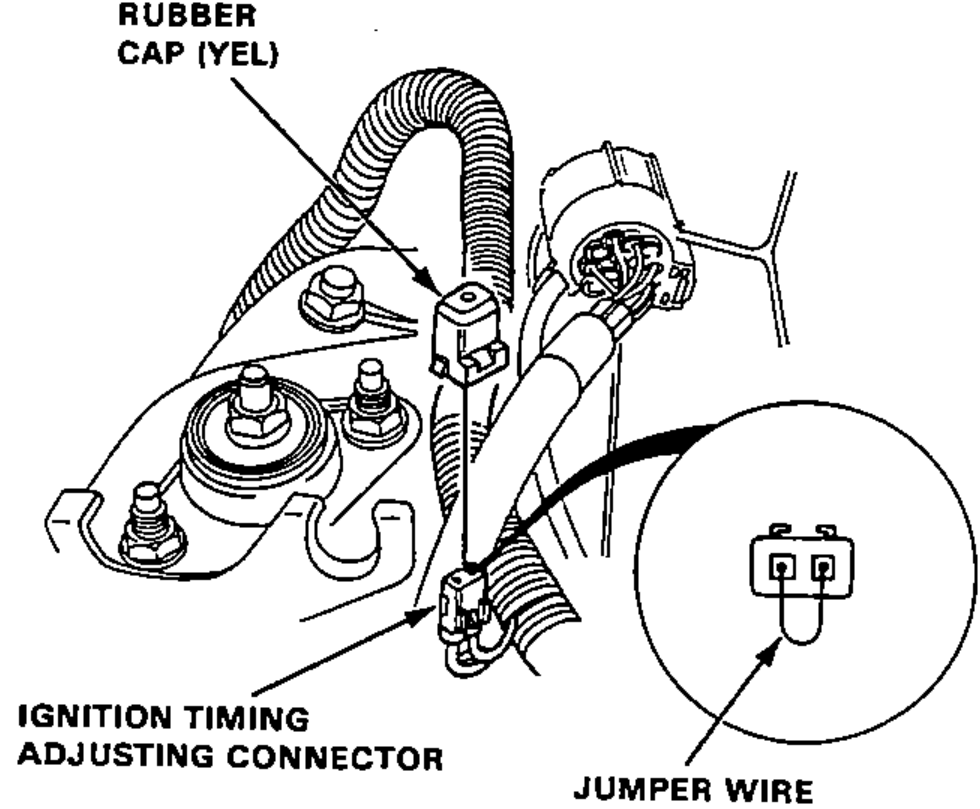

- 2Remove the rubber cap (YEL) from the ignition timing adjusting connector located left rear engine compartment and connect the BRN and GRN/WHT terminals with a jumper wire.

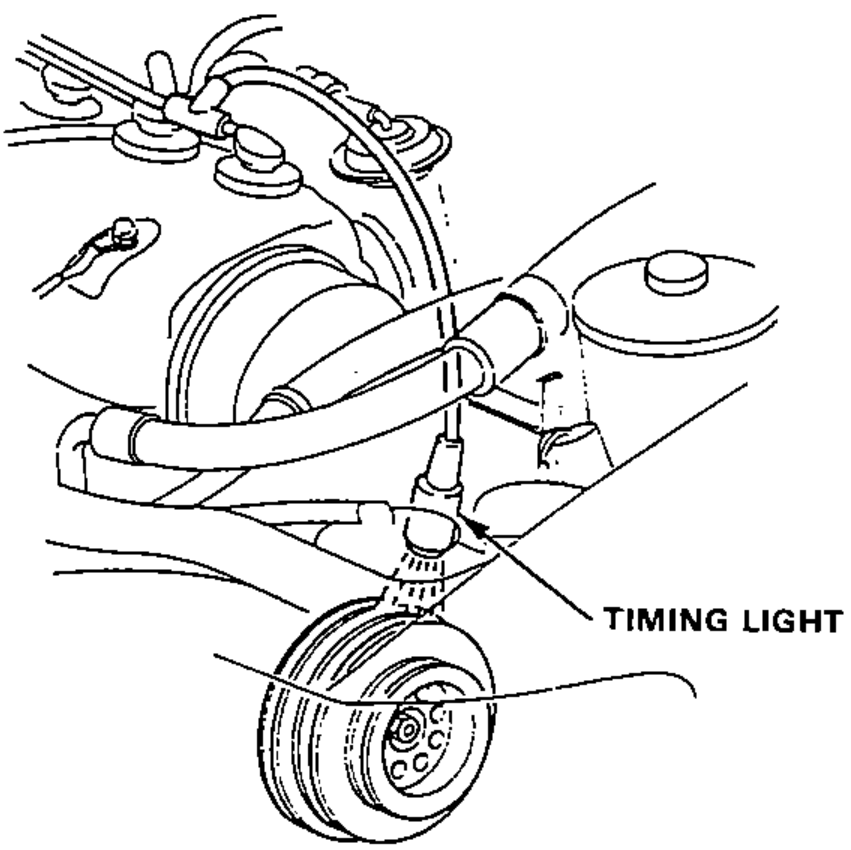

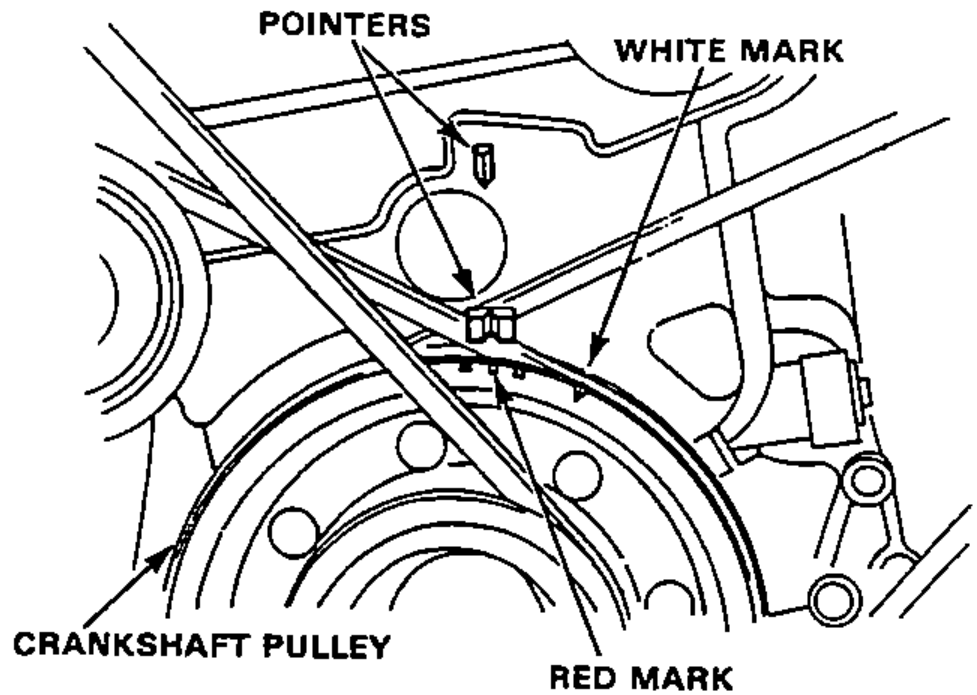

- 3Connect a timing light to the engine; while the engine idles, point the light toward the pointer on the timing belt cover.
- 4Adjust ignition timing, if necessary, to the following specifications:

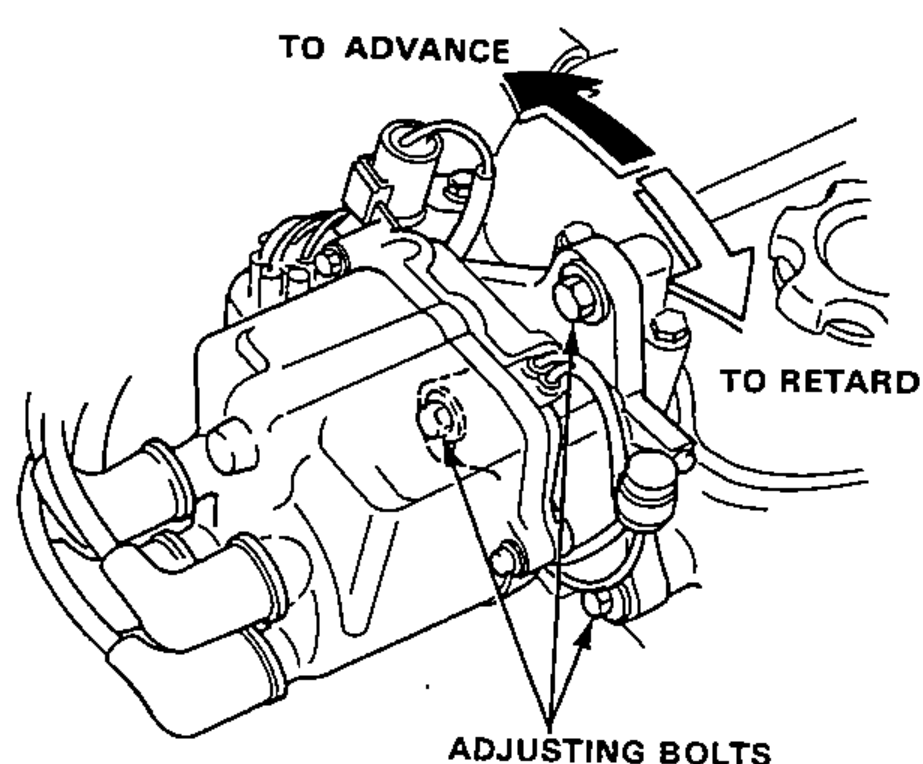

- 5Adjust as necessary by loosening the distributor adjusting bolts, and turn the distributor housing counterclockwise to advance the timing, or clockwise to retard the timing.
- 6Tighten the adjusting bolts and recheck the timing.
- 7Remove the jumper wire and install the rubber cap to the ignition timing adjusting connector.
Ignition Timing
| Specification | Value |
|---|---|
| 1.6l SOHC (With CATA) | 18°±2° BTDC (RED) at 750±50 min⁻¹ (rpm) in neutral |
| 1.6l SOHC (Without CATA) | 18°±2° BTDC (RED) at 780±50 min⁻¹ (rpm) in neutral |
| 1.6l DOHC (EX. KQ model) | 16°±2° BTDC (RED) at 800±50 min⁻¹ (rpm) in neutral |
| 1.6l DOHC (KQ model) | 16°±2° BTDC (RED) at 750±50 min⁻¹ (rpm) in neutral |
1.6l SOHC (With CATA)
18°±2° BTDC (RED) at 750±50 min⁻¹ (rpm) in neutral
1.6l SOHC (Without CATA)
18°±2° BTDC (RED) at 780±50 min⁻¹ (rpm) in neutral
1.6l DOHC (EX. KQ model)
16°±2° BTDC (RED) at 800±50 min⁻¹ (rpm) in neutral
1.6l DOHC (KQ model)
16°±2° BTDC (RED) at 750±50 min⁻¹ (rpm) in neutral
