Lock Cylinder Replacement / Steering Lock Replacement

16-31prose procedure

1
Remove the dashboard lower panel.
2
Remove the steering wheel, then remove the steering column covers.
3
Turn the ignition key to "I."
4

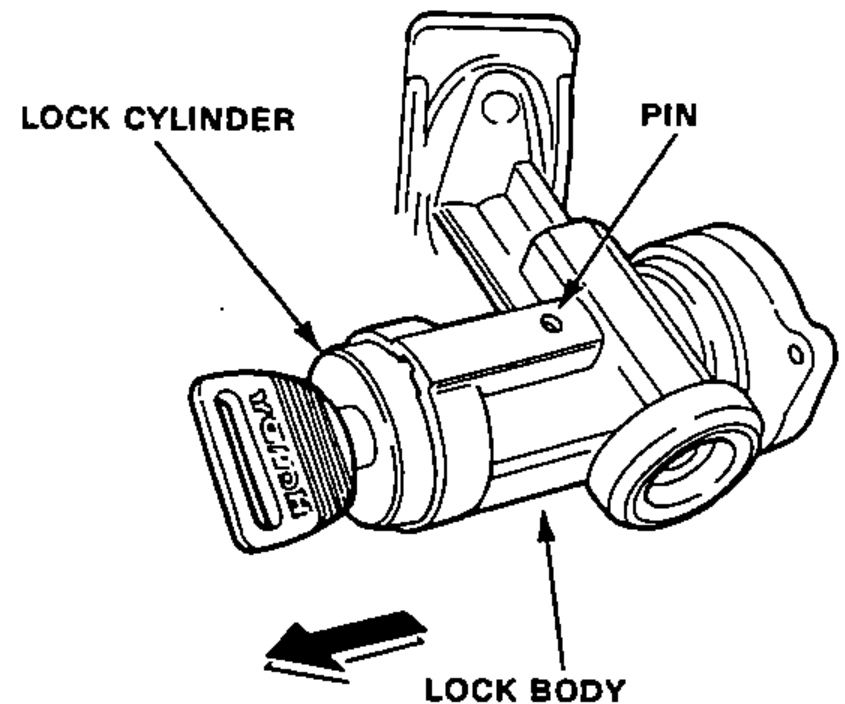

Push the pin in and remove the lock cylinder from the lock body.
5
Turn the key to "O" and align the lock cylinder with the lock body.
6

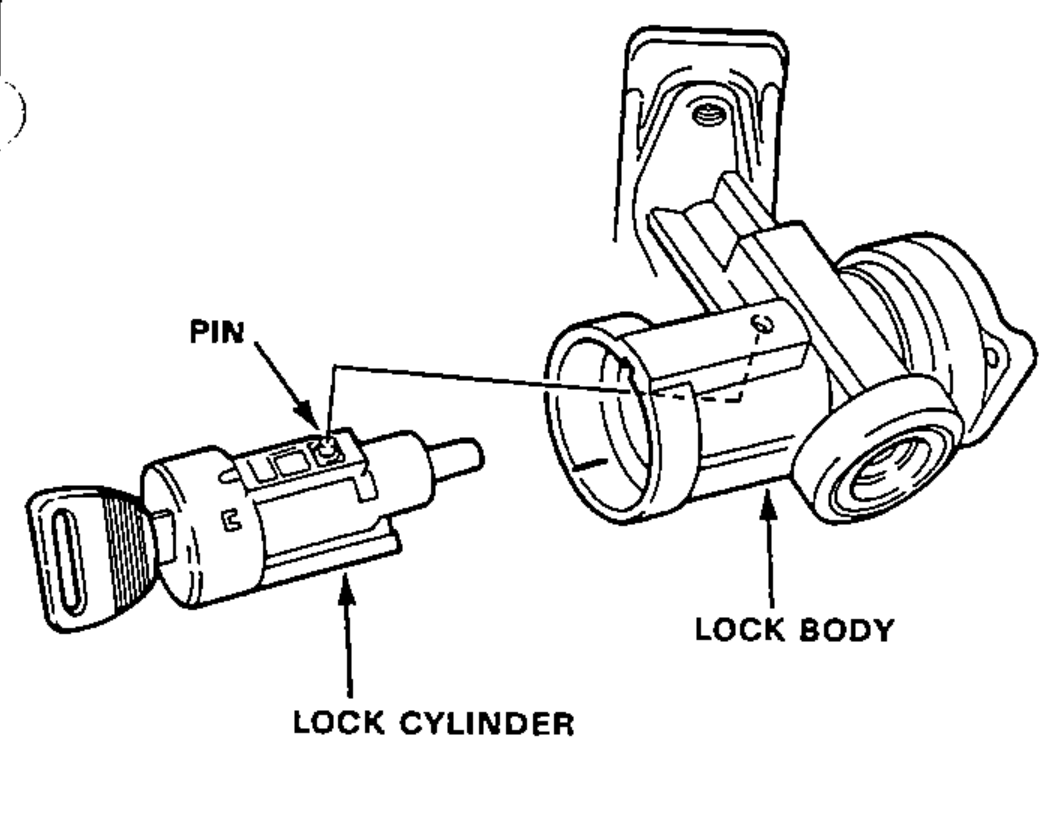

Turn the key almost to "I" and insert the lock cylinder until the pin touches the body.
7
Turn the key to the "I", push the pin and insert the lock body cylinder into the lock until the pin clicks into place.

Steering Lock Replacement

1
Remove the dashboard lower panel.
2
Remove the steering wheel, then remove the steering column covers.
3

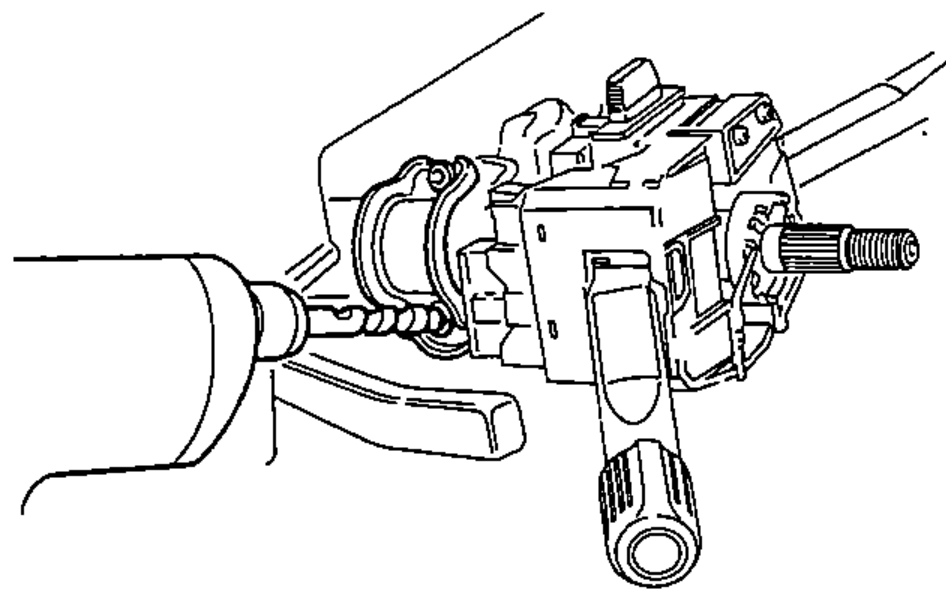

Center punch each of the 2 shear bolts and drill their heads off with a 3/16 in. drill bit.
CAUTION Do not damage the switch body when removing the shear heads.
4
Remove the shear bolts from the switch body.
5
Install the new ignition switch without the key inserted.
6
Loosely tighten the new shear bolts.
NOTE: Make sure the projection on the ignition switch is aligned with the hole in the steering column.
7
Insert the ignition key and check for proper operation of the steering wheel lock and that ignition key turns freely.
8
Tighten the shear bolts until the hex heads twist off.
