Ignition System - Ignition Coil Test

16-52prose procedure

Ignition Coil Test

  1. 1
    With the ignition switch OFF, remove the distributor cap.
  2. 2
    Remove the 2 screws to disconnect the BLK/YEL and WHT/BLU wires from the terminals A and B respectively.

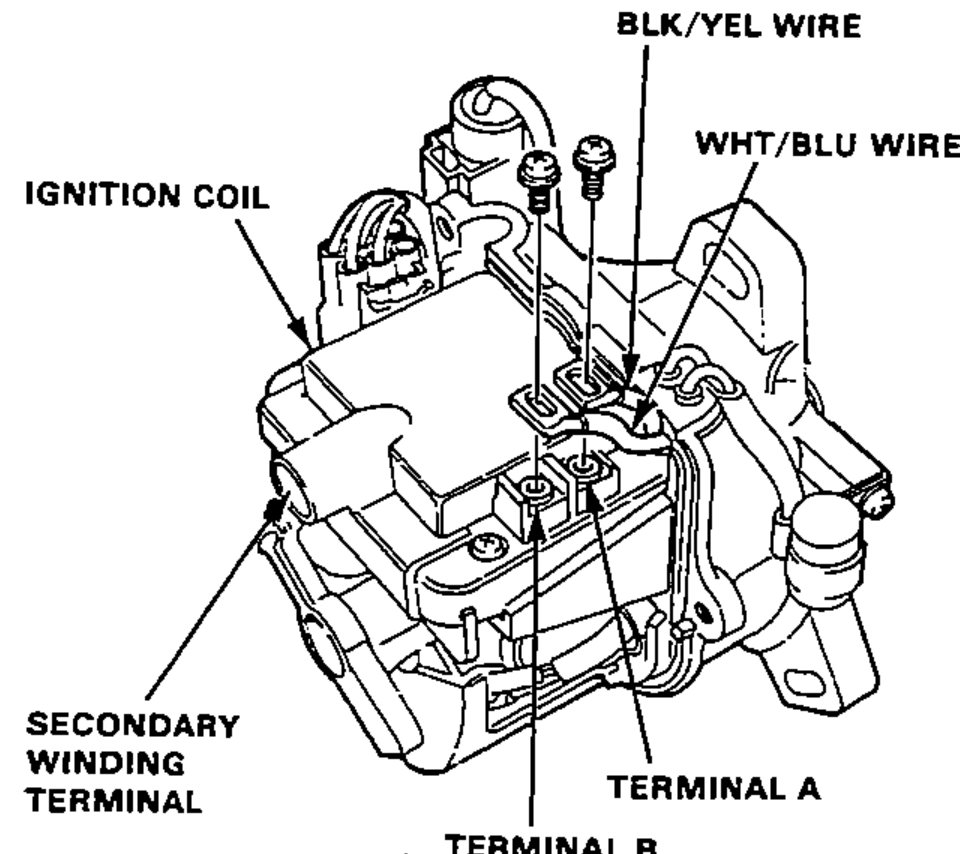

    Ignition coil mounted in the distributor, showing the BLK/YEL and WHT/BLU wires connected to terminals A and B, the secondary winding terminal, and the two mounting screws.
  3. 3
    Using an ohmmeter, measure resistance between the terminals. Replace the coil if the resistance is not within specifications.
    NOTE: Resistance will vary with the coil temperature; specifications are at 20°C (70°F)
    Schematic of the ignition coil windings showing terminals A and B for the primary winding and the secondary winding terminal, used to identify the resistance measurement points.
Primary Winding Resistance (between the A and B terminals)
0.3-0.5 ohmsohms
Secondary Winding Resistance (between the A and secondary winding terminals)
9,440-14,160 ohmsohms
