Relays and Control Unit Locations - Dashboard
16-6component photoRHD type symmetrical to LHD. Headlight washer control unit on KS, KW-Norway, Finland models; seat heater main relay KS model only.
Dashboard
NOTE
RHD type is symmetrical to LHD type.

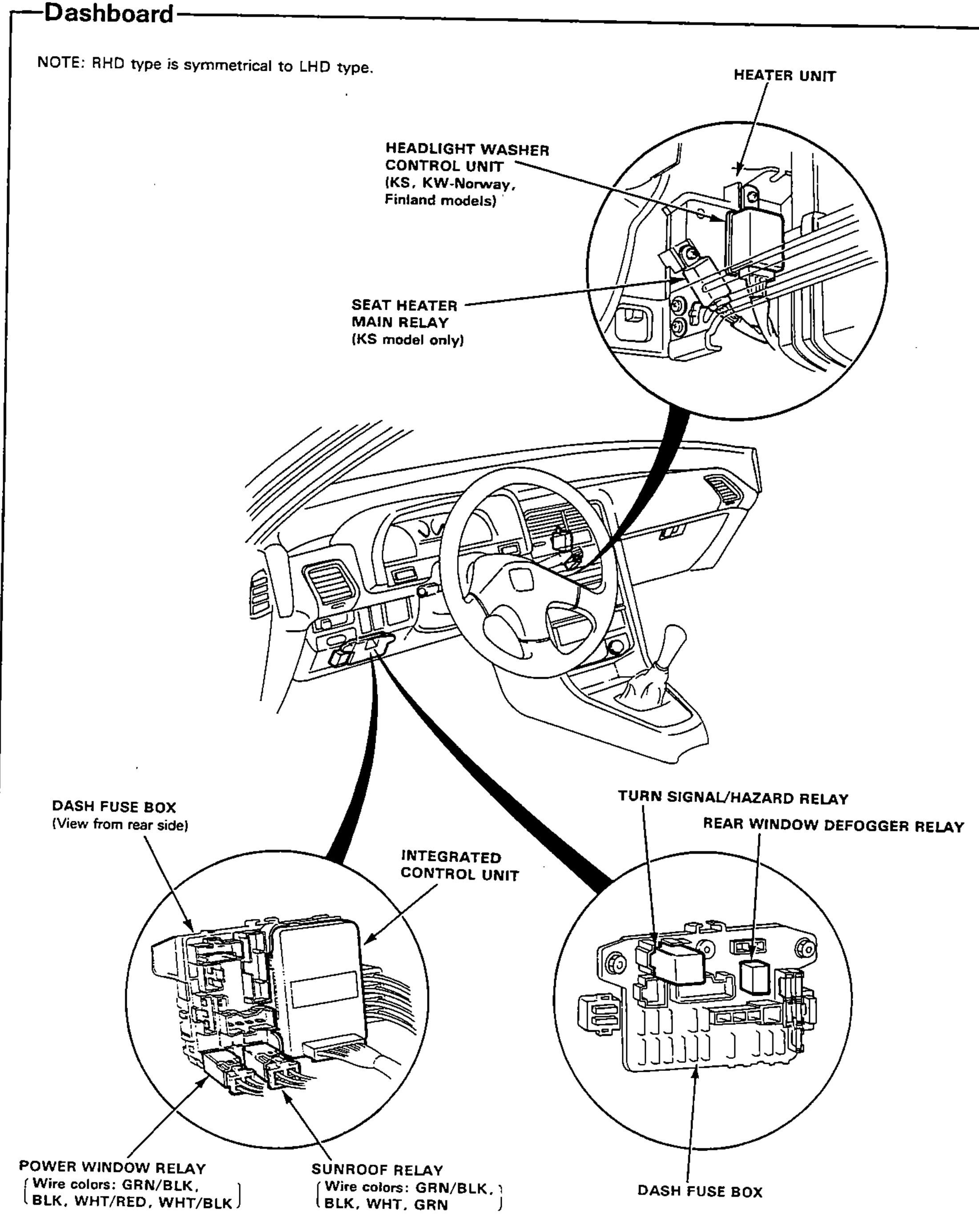

- 1Relay and control unit locations at the dashboard.
Component Location
1HEATER UNIT()
2HEADLIGHT WASHER CONTROL UNIT()
3SEAT HEATER MAIN RELAY()
4DASH FUSE BOX()
5INTEGRATED CONTROL UNIT()
6POWER WINDOW RELAY()
7SUNROOF RELAY()
8TURN SIGNAL/HAZARD RELAY()
9REAR WINDOW DEFOGGER RELAY()
10DASH FUSE BOX()
