Alternator Output Test

16-59prose procedure
Continued from 16-58
  1. 5
    Compare the readings to the chart below. If no output or below specification, go to step 7. If output is within specification, go to step 6.
    NOTE: Subtract 5 to 10 amperes from the maximum reading due to engine operation.

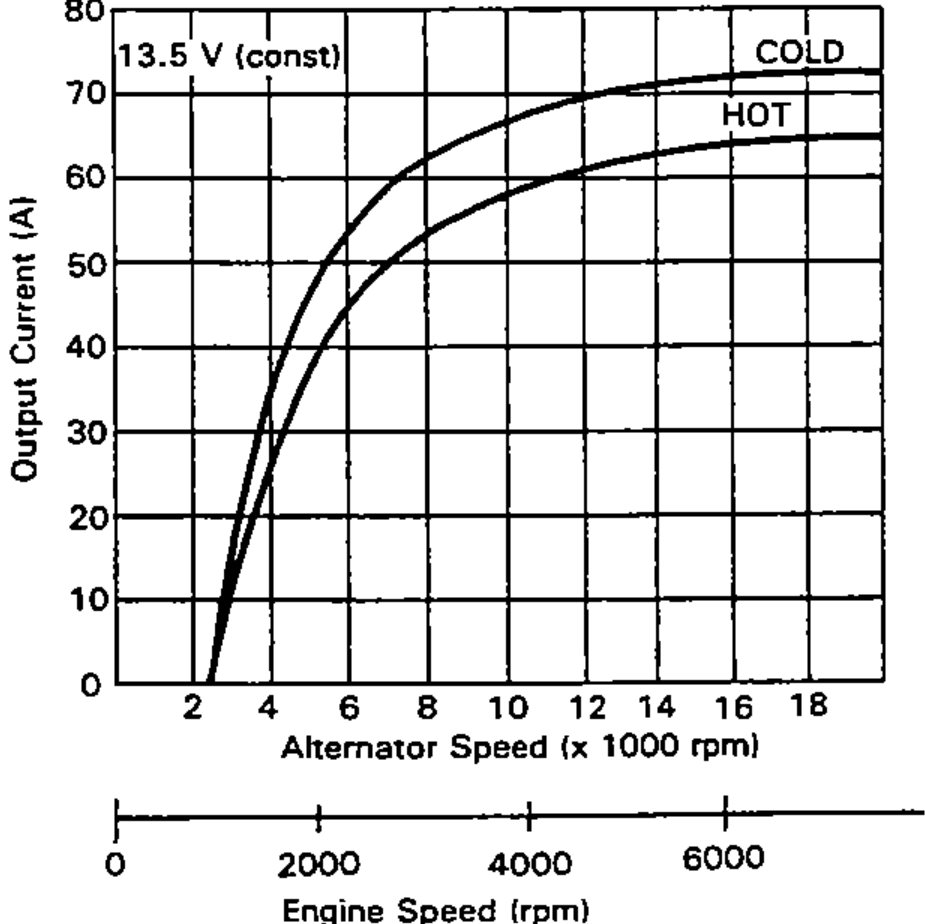

    Alternator output-current performance chart. Vertical axis: Output Current (A), 0-80. Horizontal axis: Alternator Speed (x 1000 rpm), 2-18, with a second scale below for Engine Speed (rpm) 0-6000. Two curves labelled COLD (upper) and HOT (lower), tested at 13.5 V (const).
  2. 6
    Turn off all loads in step 4, then measure the alternator output voltage at 1,500 rpm.
  3. 7
    Perform a full-field test: Insert a short screwdriver into the full field access hole at the back of the alternator. While grounding the screwdrive and check amperage reading.
    CAUTION: The voltage will rise quickly when the alternator is full fielded. Do not allow the voltage to exceed 18 volts or damage to the electrical system may result.

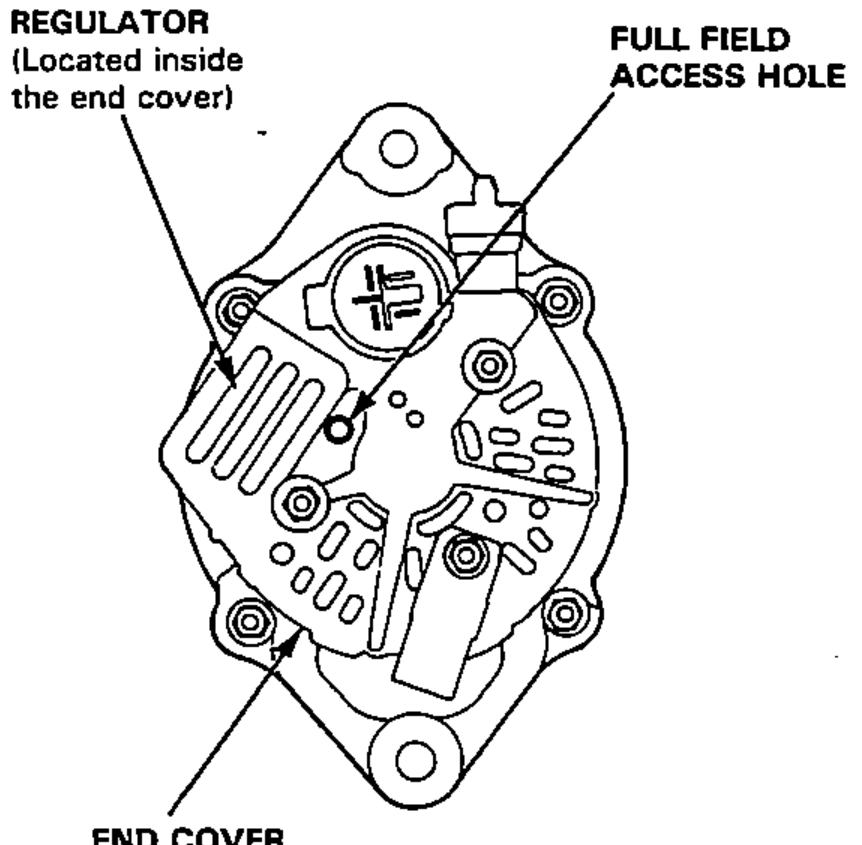

    Rear view of the alternator showing the end cover, with the regulator located inside the end cover, and the full field access hole at the back used for the full-field test.
