Charging System - Alternator Belt Adjustment
16-64prose procedureAlternator Belt Adjustment

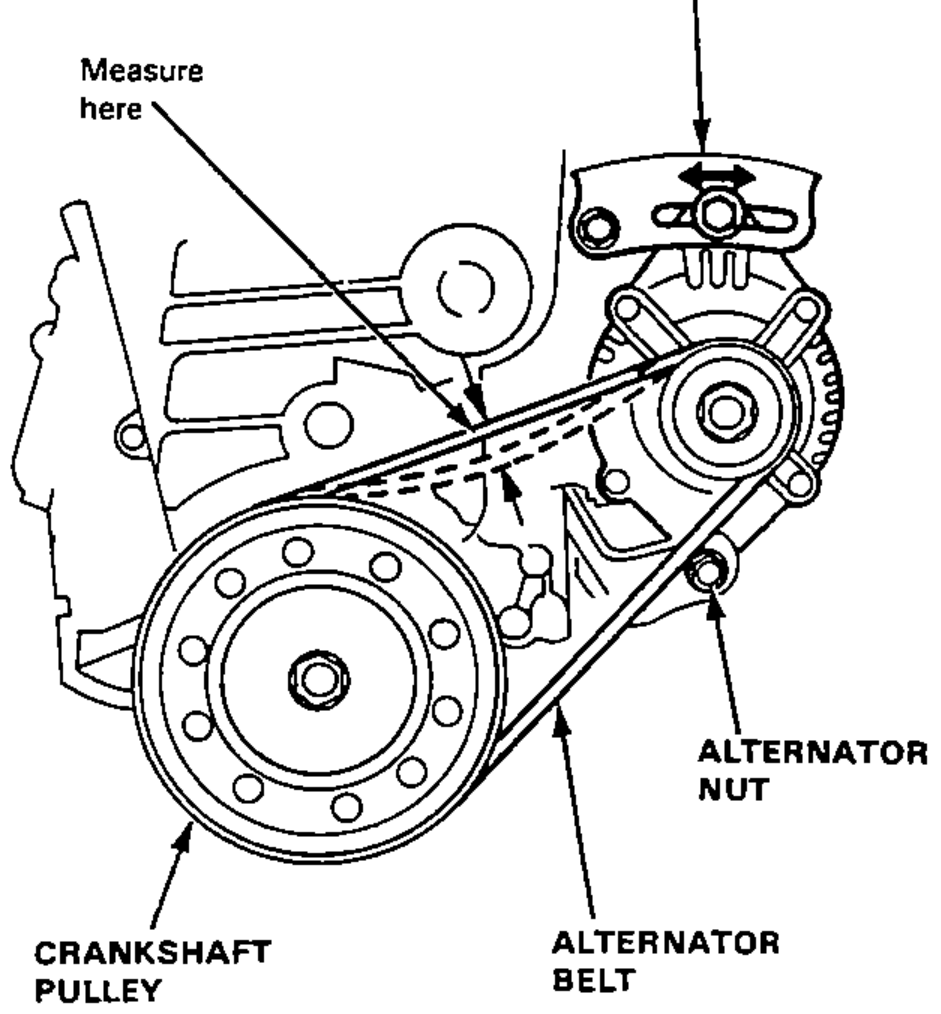

- 1Apply a force of 98 N (10 kg, 22 lb) and measure the deflection between the alternator and the crankshaft pulley.NOTE: On a brand-new belt, the deflection should be 7-9 mm (0.25-0.35 in) when first measured.
- 2Loosen the alternator adjusting bolt and nut.
- 3Move the alternator to obtain the proper belt tension, then retighten the adjusting bolt and nut.
- 4Recheck the deflection of the belt.
| Specification | Value |
|---|---|
| Deflection | 9-11 mm (0.35-0.43 in) |
| Alternator adjusting bolt | 24N·m |
Deflection
9-11 mm (0.35-0.43 in)
Alternator adjusting bolt
24N·m
