Honda CRX silhouetteCRX

Dome Light

16-104prose procedure

Test

  1. 1
    Turn the light switch OFF.
  2. 2
    Pry off the lens.

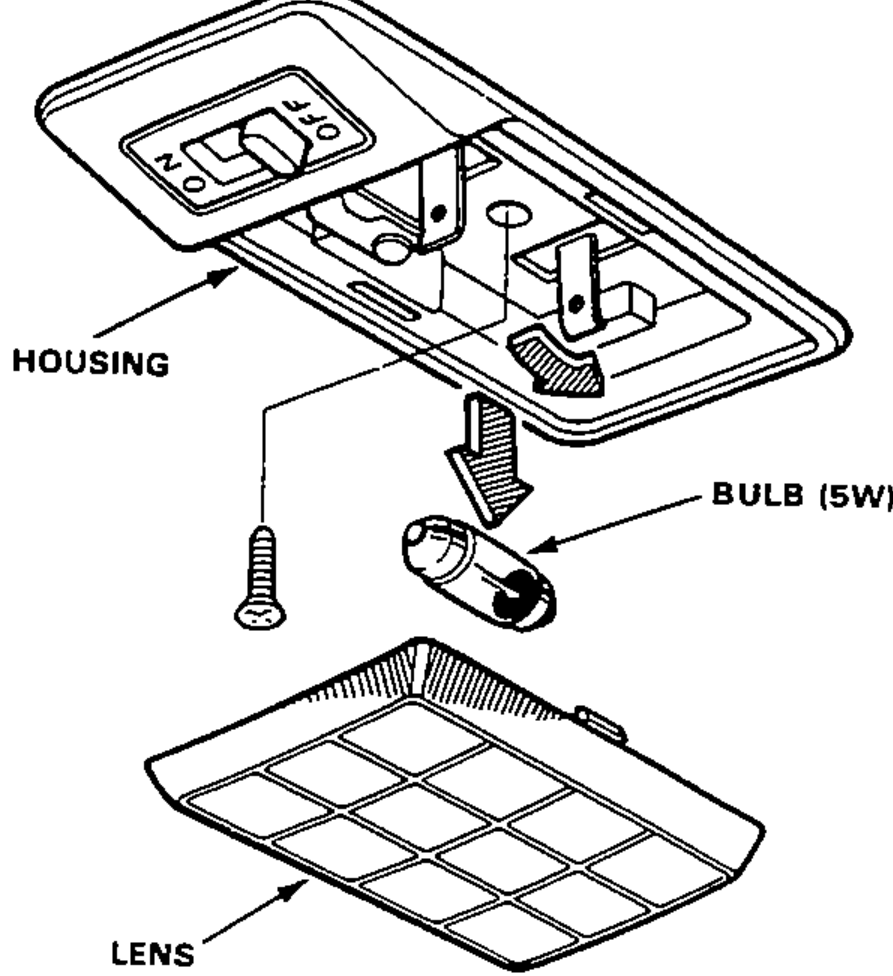

    Exploded view of the dome light: housing with the ON/OFF switch, the 5W bulb, the mounting screw, and the lens.
  3. 3
    Remove the screw and the housing.
  4. 4
    Disconnect the two connectors from the housing.

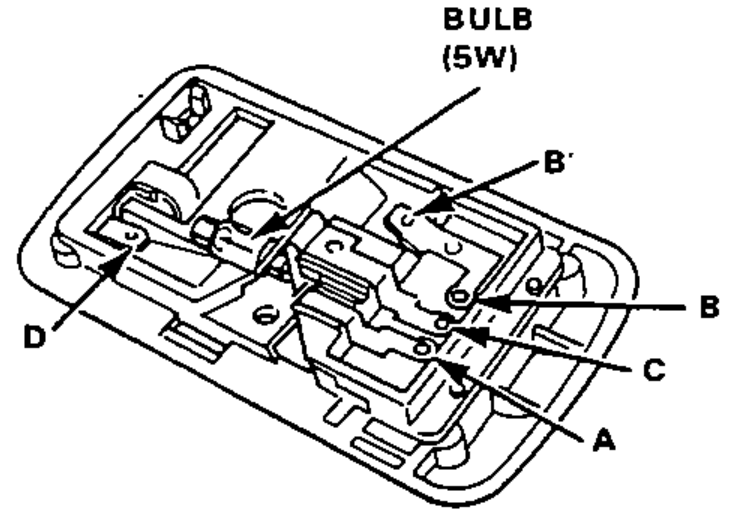

    Interior view of the dome light housing showing the 5W bulb and the terminal positions D, B', B, C, A.
  5. 5
    Check for continuity between the terminals in each switch position according to the table.

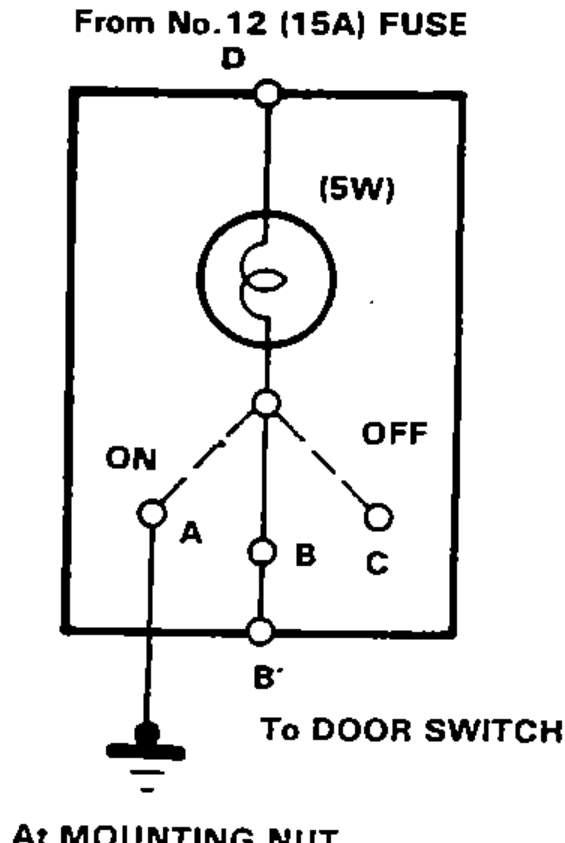

    Wiring schematic of the dome light circuit: power from No.12 (15A) fuse at terminal D feeds the 5W bulb; a 3-position switch (ON/OFF) selects terminals A, B, C; terminal B' goes to the door switch; the ground is at the mounting nut.
OFF
Continuity between terminals (A, B or B', C, D; bulb 5W between D and C)D — C (through 5W bulb)
MIDDLE
Continuity between terminals (A, B or B', C, D; bulb 5W between D and C)D — C (through 5W bulb); B or B' — C
ON
Continuity between terminals (A, B or B', C, D; bulb 5W between D and C)D — C (through 5W bulb); A — C
