Seat Heaters (KS model only)

16-150prose procedure

KS model only.

Switch Removal

  1. 1
    Remove the front console.
  2. 2
    Disconnect the 4-P connector to remove the switch, then push the switch behind the center instrument panel.

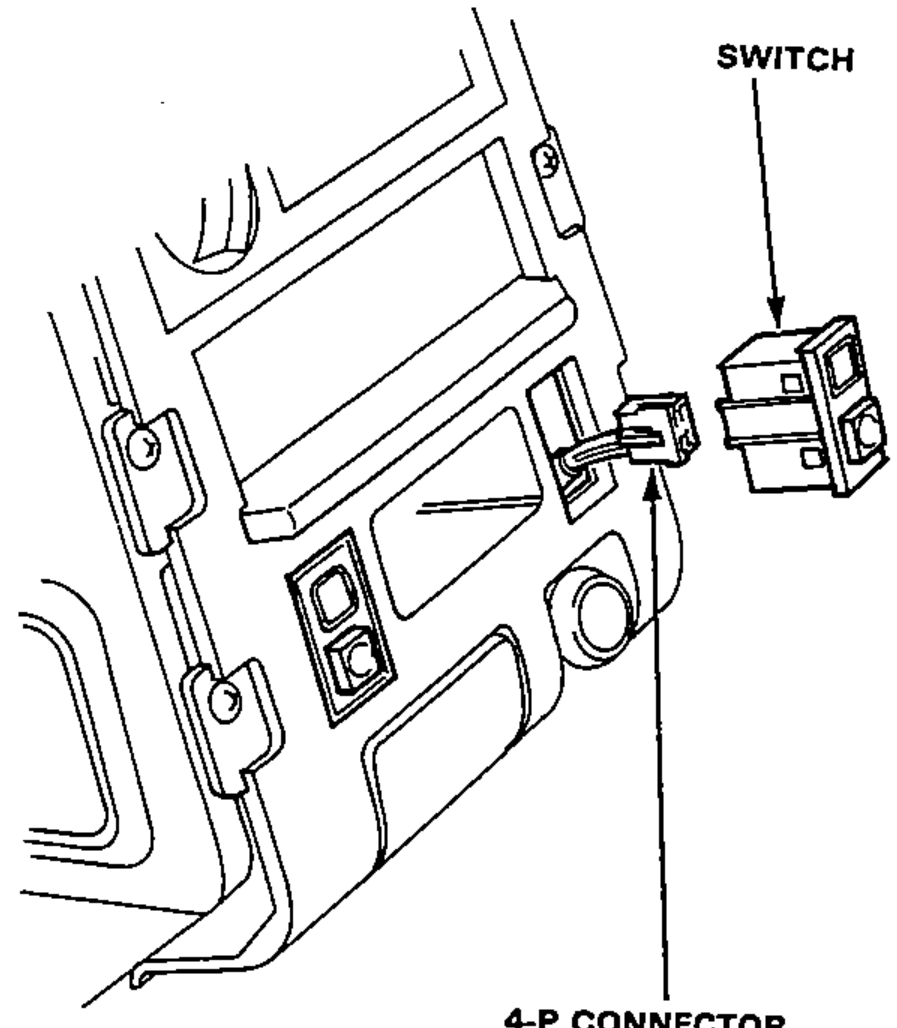

    Seat heater switch removal from the center instrument panel. Shows the switch and its 4-P connector being disconnected behind the panel.
  3. 3
    Turn the socket 45° counter-clockwise to remove it.

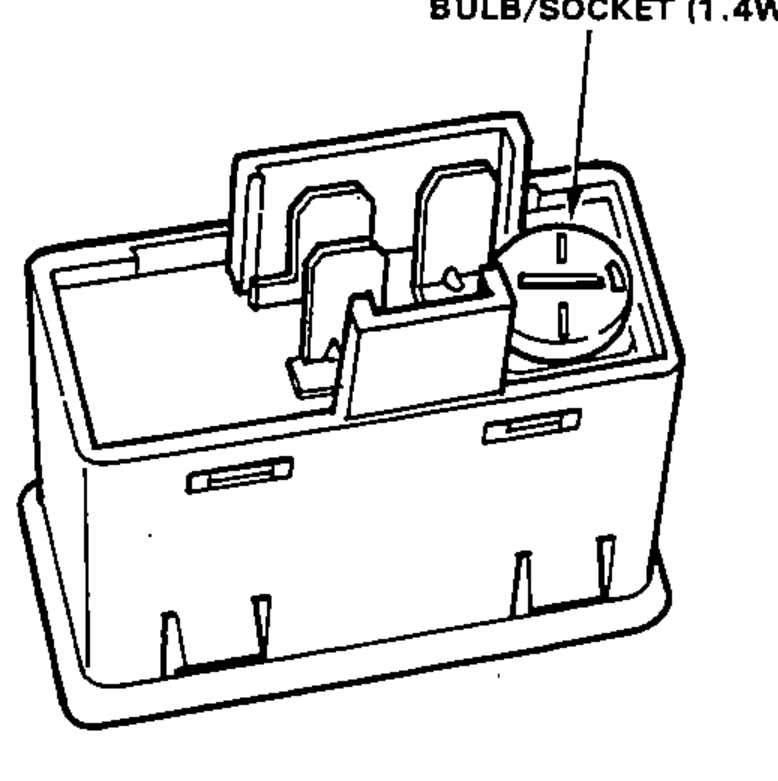

    Indicator bulb and socket in the seat heater switch, removed by turning 45 degrees counter-clockwise.

Switch Test

  1. 1
    Remove the seat heater switch from the center instrument panel.

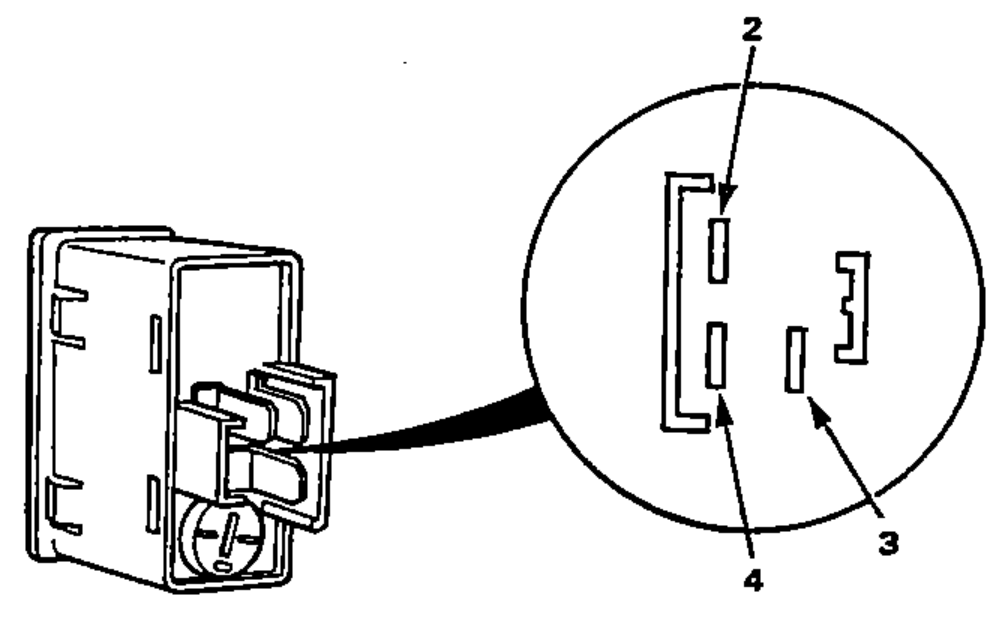

    Seat heater switch showing terminal locations. Terminals numbered 2, 3 and 4 on the connector face.
  2. 2
    There should be continuity between the No.4 and No.2 terminals when the switch is clicked into ON. There should be no continuity when the switch is clicked into OFF.
    Internal circuit schematic of the seat heater switch showing continuity path between terminals 2, 3 and 4 with the 1.4W indicator bulb.
