Honda CRX silhouetteCRX

Stereo Sound System - Speaker Replacement

16-118prose procedure
Continued from 16-117

Speaker Replacement

Front Speakers:

  1. 1
    Remove the 2 screws on the front edge of the grille.

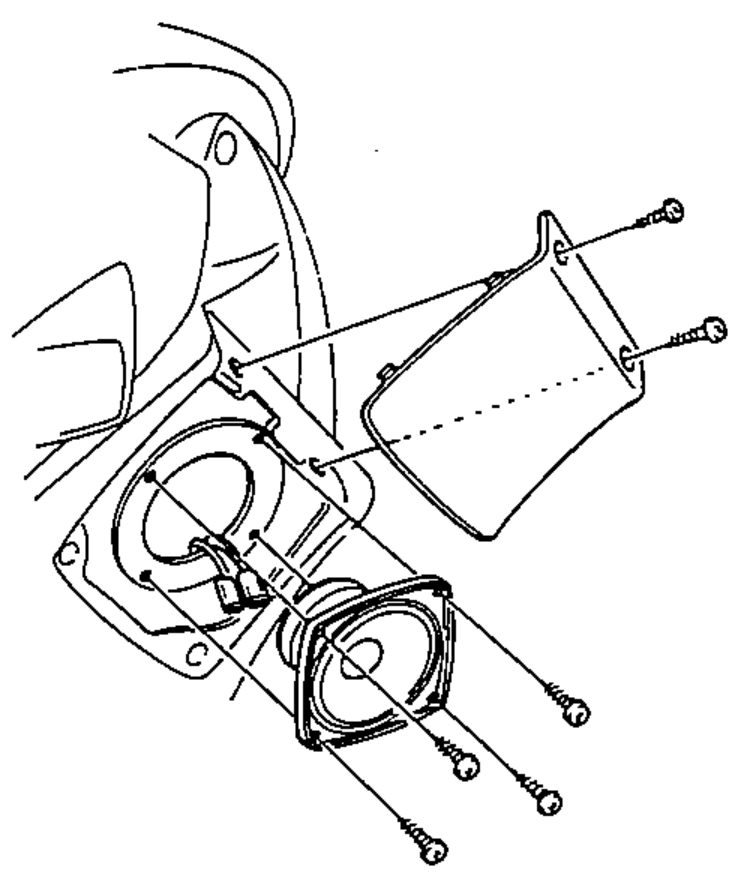

    Front speaker removal: exploded view of the front-door/kick-panel speaker grille, mounting screws and the speaker being withdrawn from the panel.
  2. 2
    Remove the screws, then disconnect the wires from the speaker.

Rear Speakers:

  1. 1
    Remove the 2 screws on the edge of the grille.

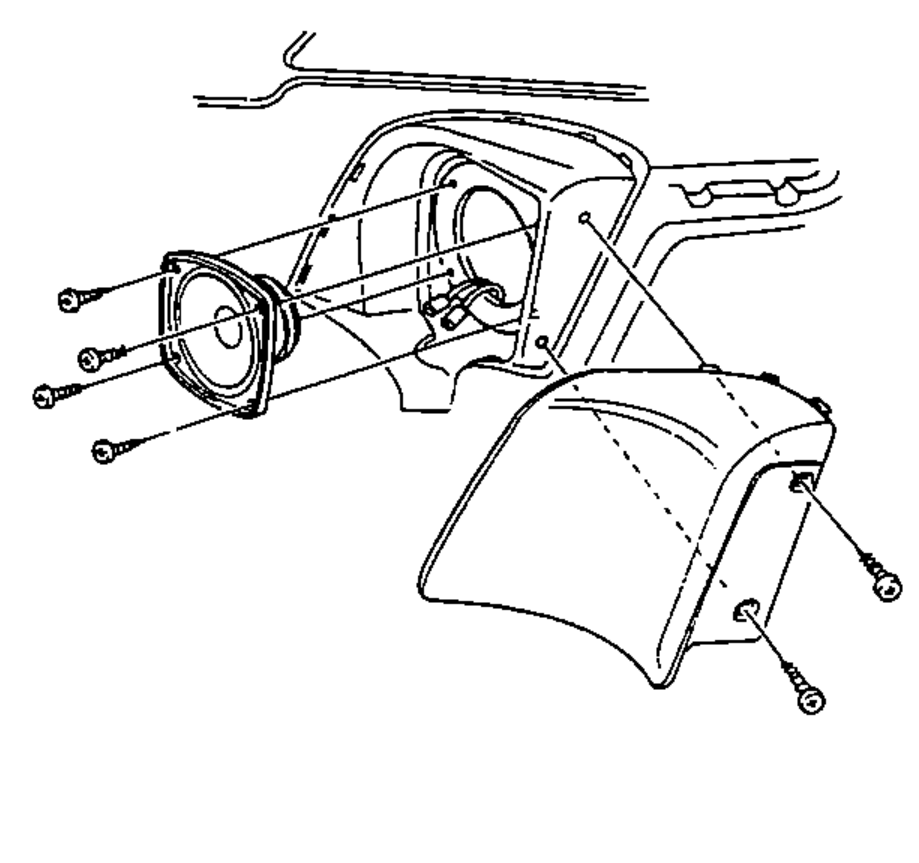

    Rear speaker removal: exploded view of the rear side-panel speaker grille, mounting screws and the speaker being withdrawn from the panel.
  2. 2
    Remove the screws, then disconnect the wires from the speaker.
