Gauge Assembly — Removal

16-73prose procedure

Removal

  1. 1

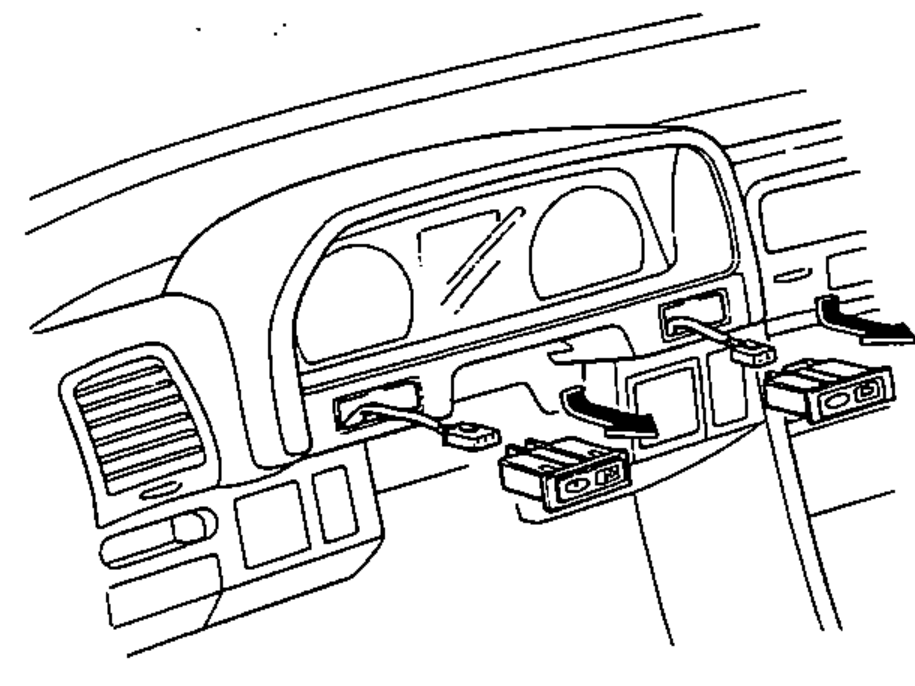

    Remove the switches from the instrument panel.
    Illustration of the instrument panel showing a switch being pulled out of its opening (step 1).
  2. 2

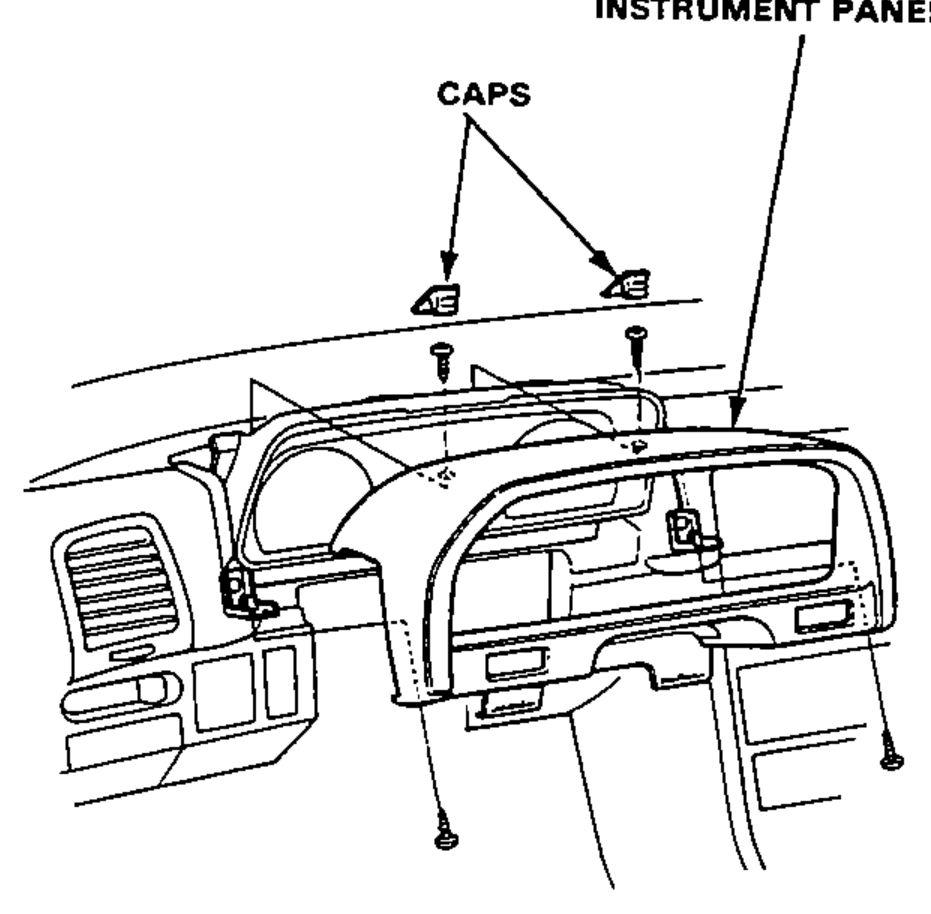

    Remove the caps and 4 screws, then remove the instrument panel from the dashboard.
    Illustration of the instrument panel removed from the dashboard, showing the caps and 4 screw locations.
  3. 3

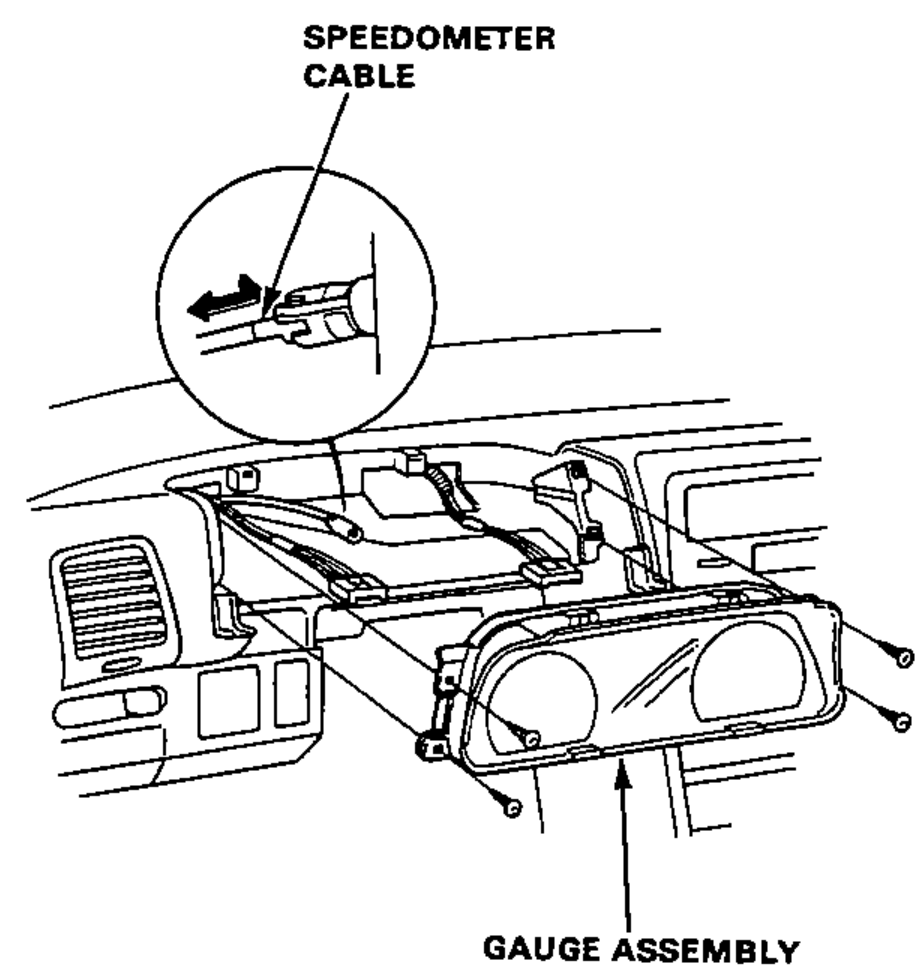

    Remove the 4 screws, then remove the gauge assembly half-way and disconnect the speedometer cable and connectors.
    Illustration of the gauge assembly pulled half-way out of the dash, with an inset detail showing the speedometer cable being disconnected.
