Power Windows — Driver's Motor Test / Passenger's Motor Test

16-146prose procedure

Driver's Motor Test

Motor Test:

  1. 1
    Remove the door trim panel.
  2. 2
    Disconnect the 4-P connector from the door wire harness.

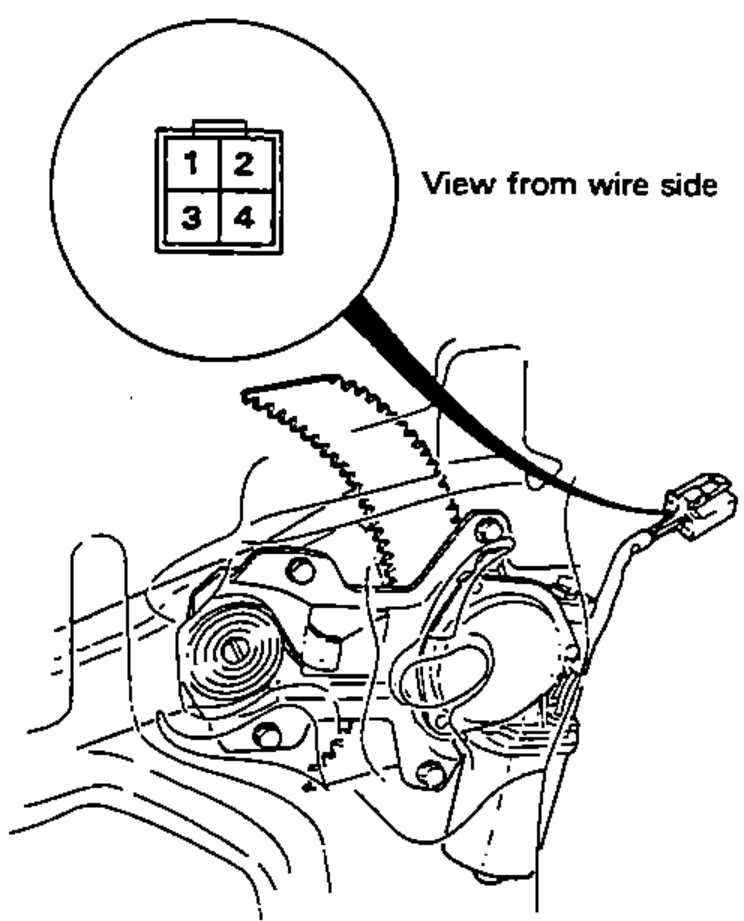

    Driver's door power-window motor and regulator location with a magnified inset of the 4-P connector viewed from the wire side, terminals 1, 2, 3, 4.
  3. 3
    Test motor operation by connecting battery voltage to the No.1 and No.2 terminals. Test the motor in each direction, by switching the leads from the battery.
  4. 4
    If the motor does not run, replace it.

Pulser Test:

Measure resistance between the No.3 and No.4 terminals when running the motor by connecting battery voltage to the No.1 and No.2 terminals. Ohmmeter should indicate between 20-50 ohms as the motor runs.

Passenger's Motor Test

  1. 1
    Remove the door trim panel.
  2. 2
    Disconnect the 2-P connector from the motor.

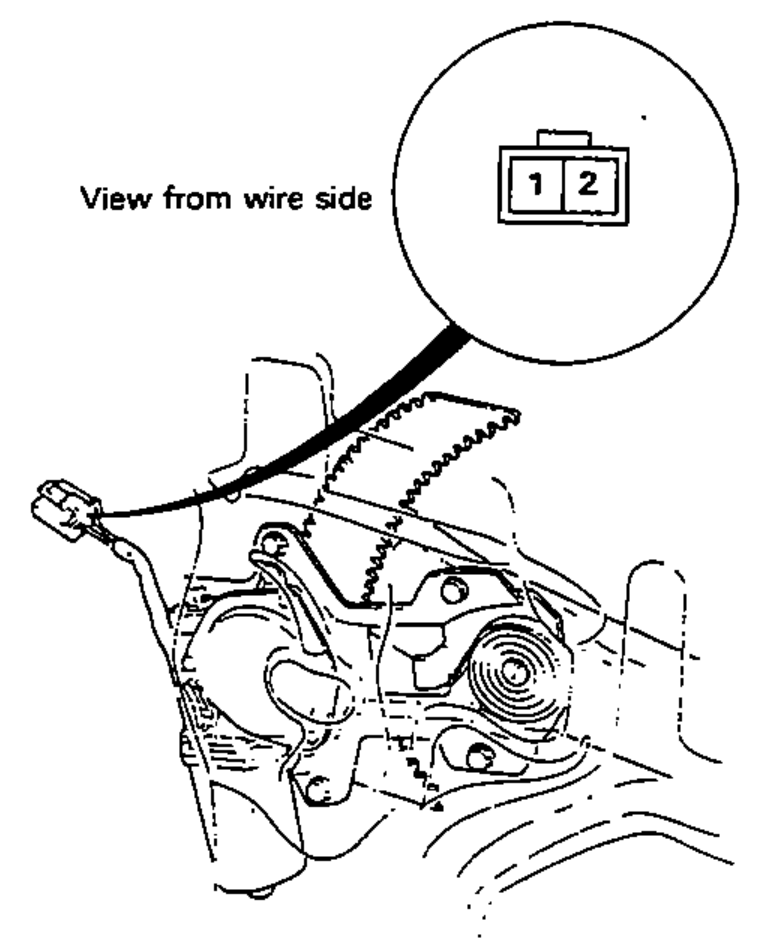

    Passenger door power-window motor and regulator location with a magnified inset of the 2-P connector viewed from the wire side, terminals 1, 2.
  3. 3
    Test motor operation by applying battery voltage to the No.1 and No.2 terminals. Test the motor in each direction, by switching the leads from the battery.
  4. 4
    If the motor does not run, replace it.
