Clock
16-119prose procedureRemoval

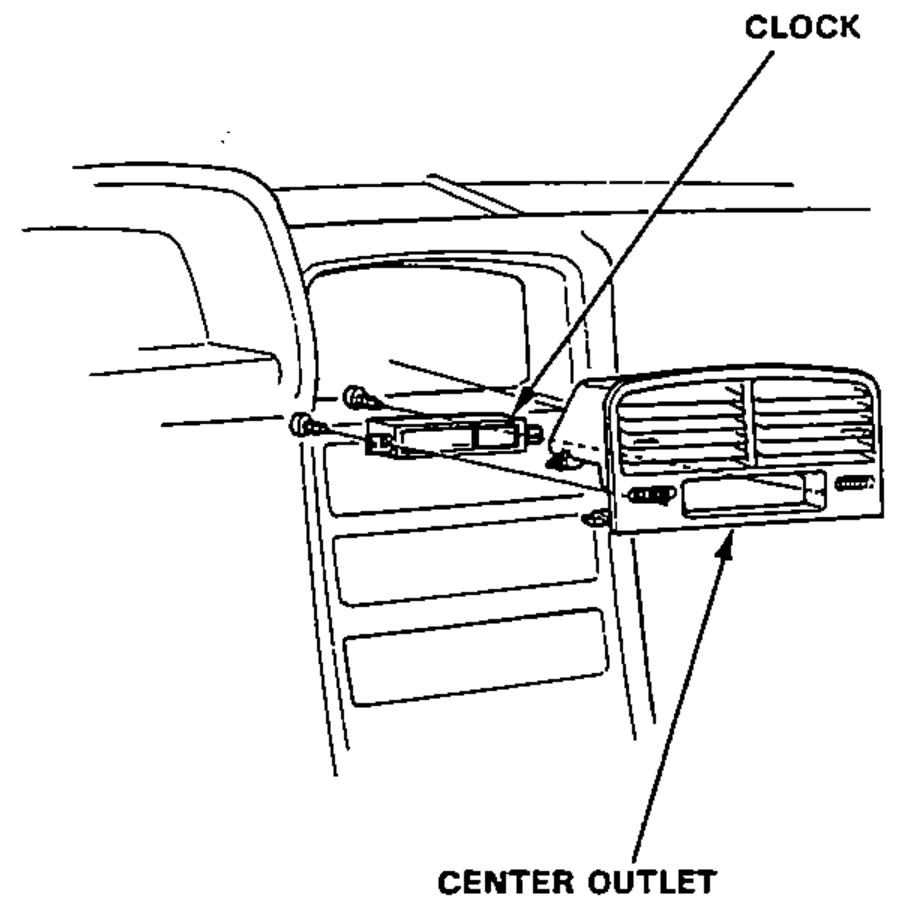

- 1Remove the center outlet from the dashboard, then disconnect the 4-P connector from the clock.
- 2Remove the 2 screws and clock from the center outlet.
Terminals
A
WireWHT/BLU
DestinationConstant power (Time memory)
B
WireYEL
DestinationIG1 (Main clock power supply)
C
WireRED/BLK
DestinationLight-on signal
D
WireBLK
DestinationGround
