Lighting System / Headlights

16-102prose procedure

Rear Fog Light Switch Test

  1. 1
    Remove the switch from the instrument panel.

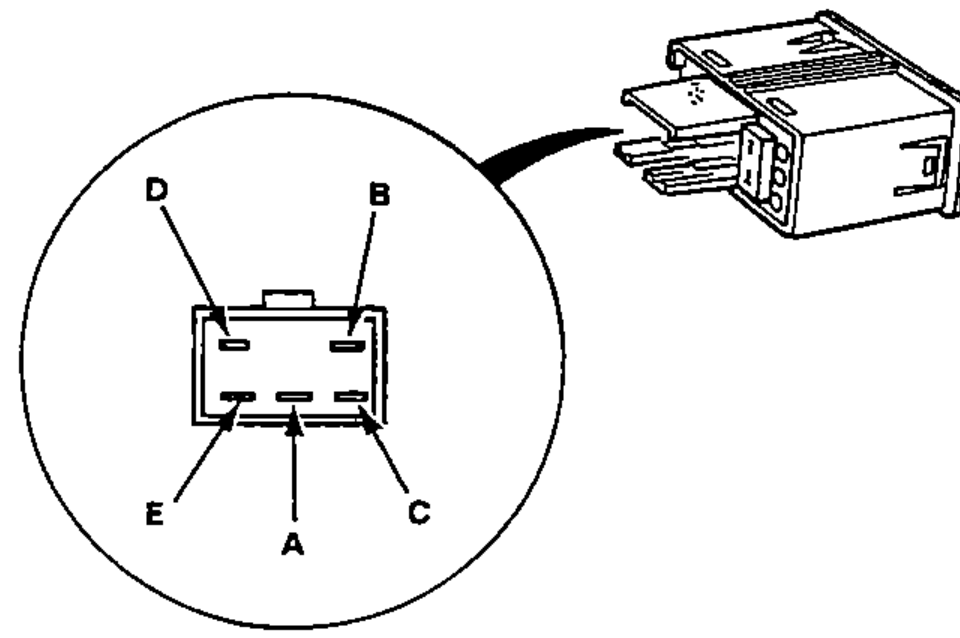

    Rear fog light switch shown with an enlarged circular terminal-side view of the connector. Top row terminals D, B; bottom row terminals E, A, C.
  2. 2
    Check for continuity between the terminals according to the table.

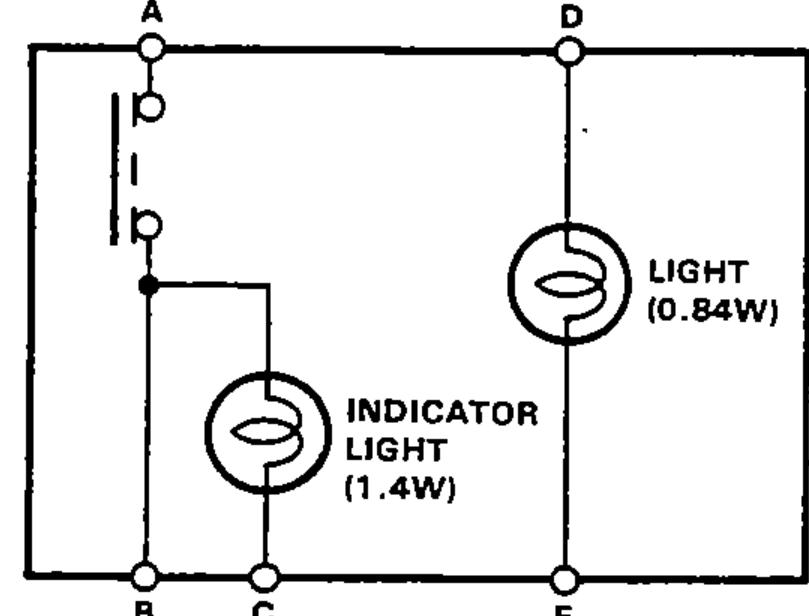

    Internal schematic of the rear fog light switch: switch contact from terminal A; INDICATOR LIGHT (1.4W) branch to terminals B/C; LIGHT (0.84W) branch to terminals D/E. Top terminals A, D; bottom terminals B, C, E.
ON
Continuity between terminals (A, B, C, D, E)A — B — C (through indicator light); D — E (through light)
OFF
Continuity between terminals (A, B, C, D, E)—
