Relays and Control Unit Locations - Dashboard (continued)

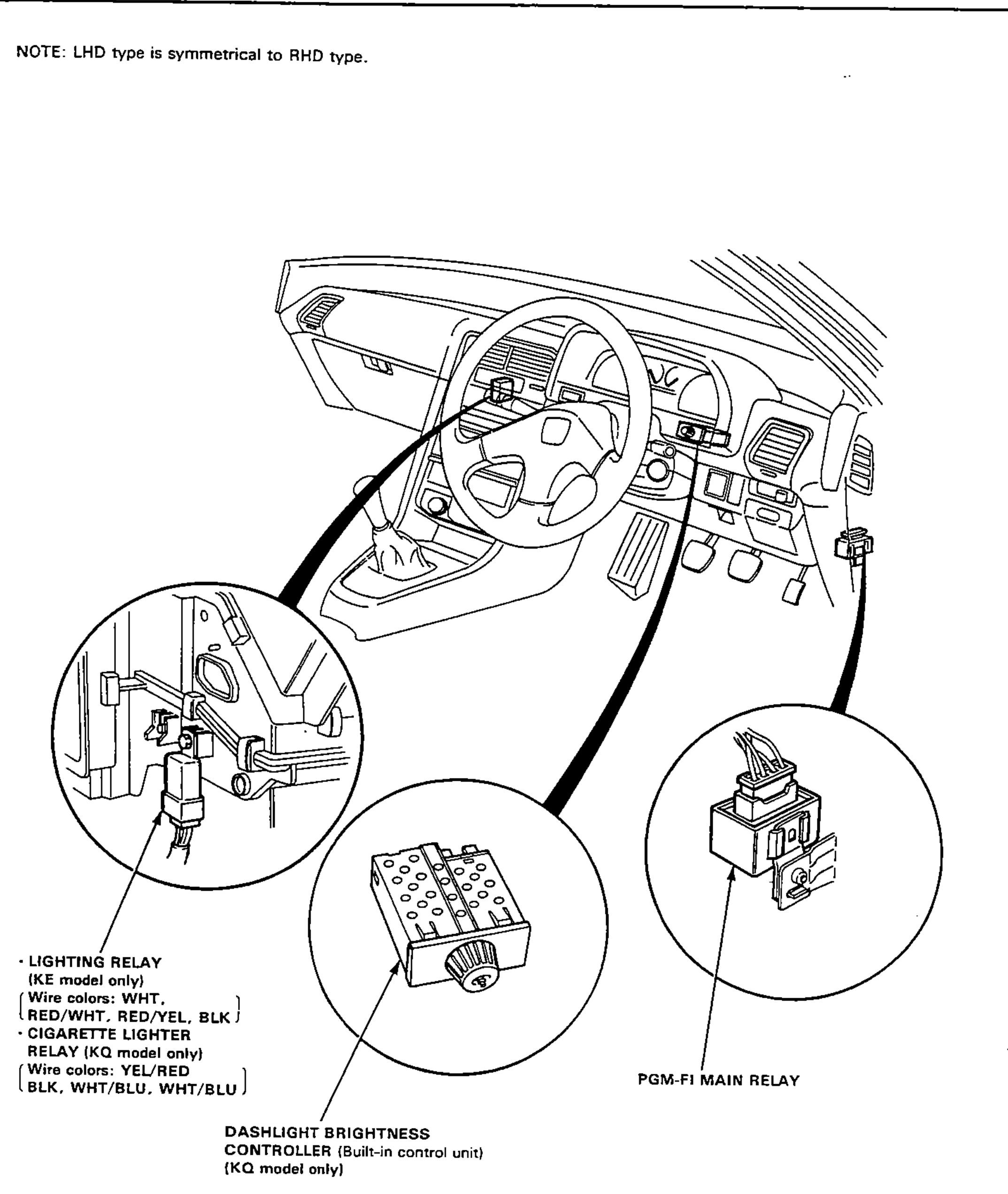

16-7component photoLHD type symmetrical to RHD. Lighting relay KE model only; cigarette lighter relay and dashlight brightness controller KQ model only.
NOTE
LHD type is symmetrical to RHD type.
- 1Additional relay and control unit locations at the dashboard.
Component Location
1LIGHTING RELAY()
2CIGARETTE LIGHTER RELAY()
3DASHLIGHT BRIGHTNESS CONTROLLER()
4PGM-FI MAIN RELAY()
