Relays and Control Unit Locations - Door and Floor

16-5component photo

RHD type is symmetrical to LHD type. Seat heater relay is KS model only.

Continued from 16-4

Door and Floor

  1. 1
    Relay and control unit locations at the door and floor.

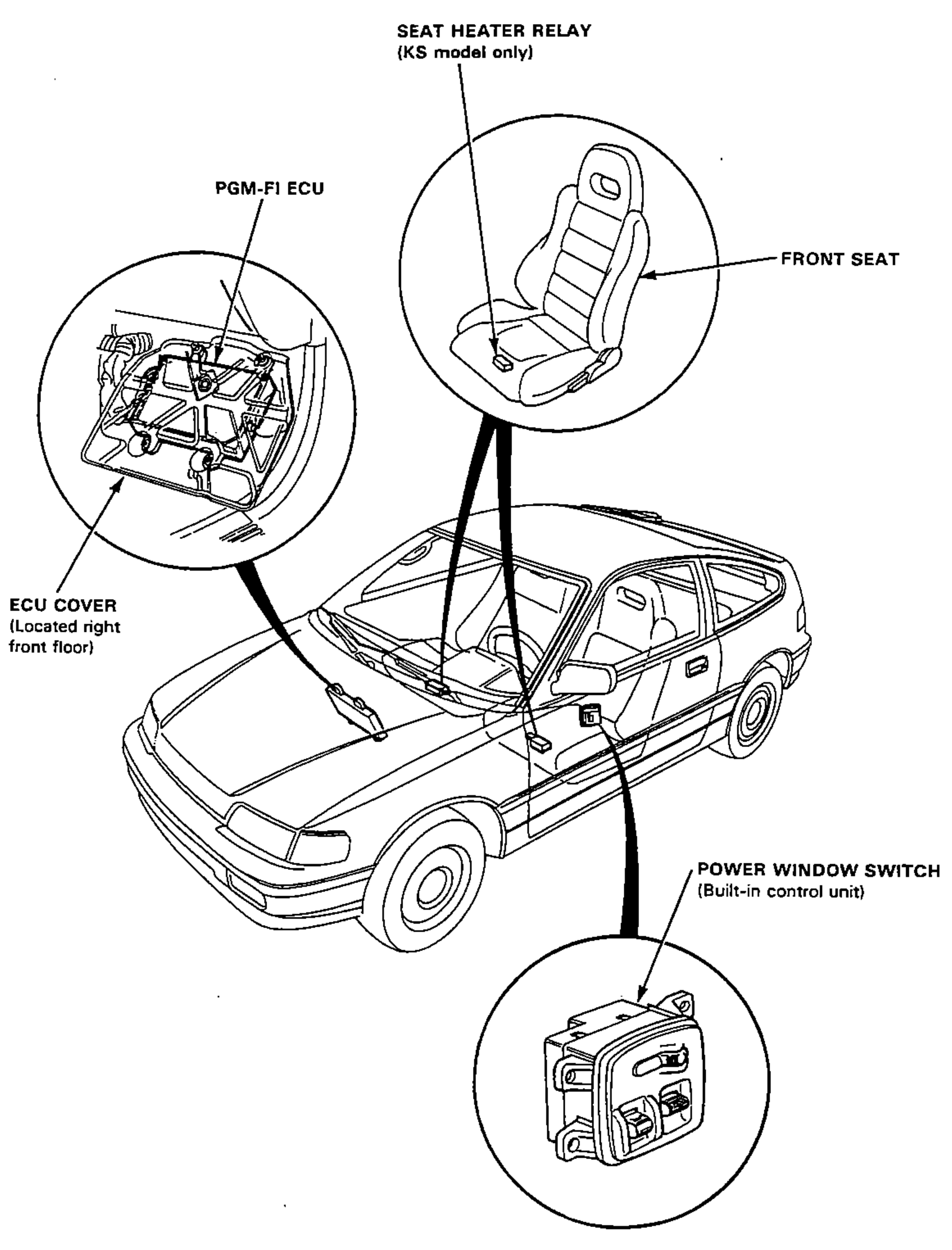

    Front three-quarter illustration of the CRX/Civic Coupe with three magnified circular detail views identifying relay/control-unit locations at the door and floor: the PGM-FI ECU under its cover on the right front floor, the seat heater relay under the front seat, and the power window switch (built-in control unit) in the door.
Component Location
1PGM-FI ECU()
2ECU COVER()
3SEAT HEATER RELAY()
4FRONT SEAT()
5POWER WINDOW SWITCH()
