Sunroof - Function test

16-137prose procedure

Ground points differ by drive orientation: LHD uses G301/G401, RHD uses G201/G401.

Function test

1
Remove the dashboard lower panel.
2

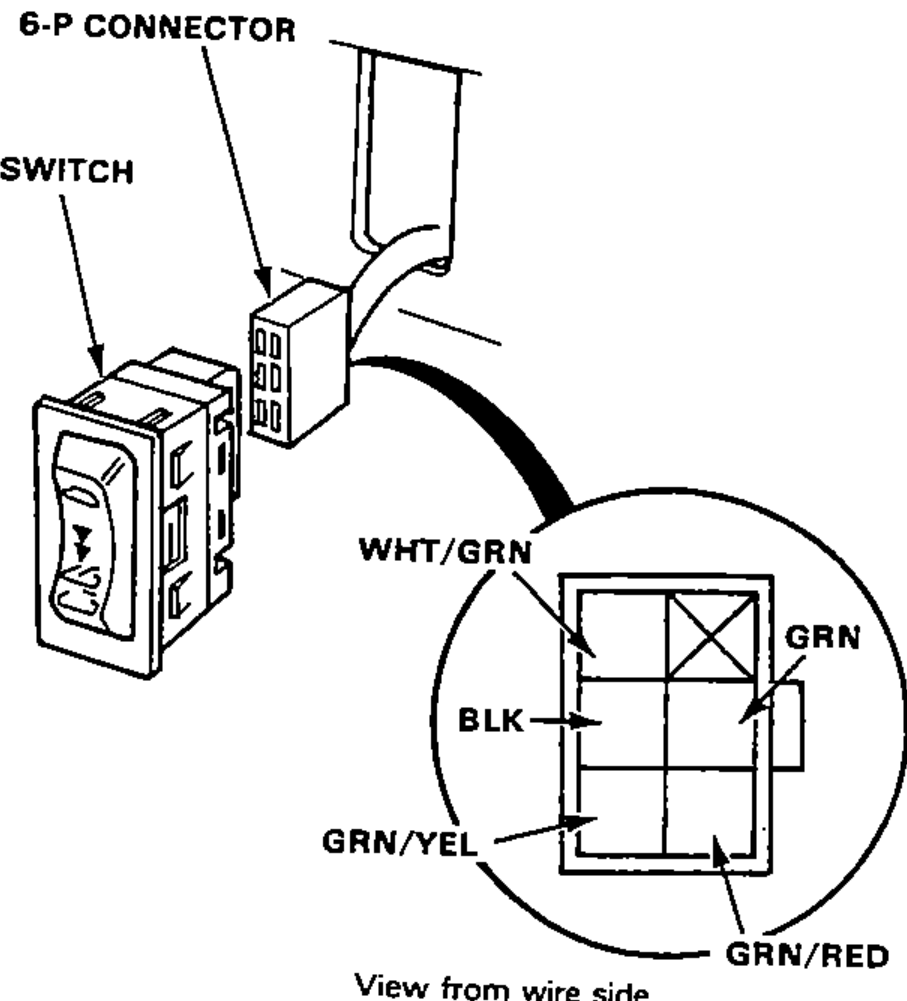

Push out the switch from behind the instrument panel, then disconnect the 6-P connector to remove the switch.
3
Check for continuity between the BLK terminal and body ground. If no continuity, check for poor ground (LHD: G301, 401 RHD: G201, 401).
4
Check for continuity between the WHT/GRN terminal and body ground with the ignition switch OFF. There should be continuity when the sunroof is closed. There should be no continuity when the sunroof is opened.
5
Check for voltage between the WHT/GRN terminal and the BLK terminal with the ignition switch ON. There should be battery voltage when the sunroof is opened.
6
Check for voltage between the GRN terminal and BLK terminal with the ignition switch ON. There should be battery voltage when the sunroof closed.
7
Connect the WHT/GRN terminal to body ground, and the GRN terminal to the GRN/RED terminal, and the GRN/YEL terminal to the BLK terminal with jumper wires. The sunroof should open when the ignition switch is turned ON.
