Heater Test / Relay Test

16-151prose procedure
  1. 1
    Disconnect the 4-P connector and 2-P connector as shown below.
    NOTE: Left front seat is shown. Right front seat is similar.

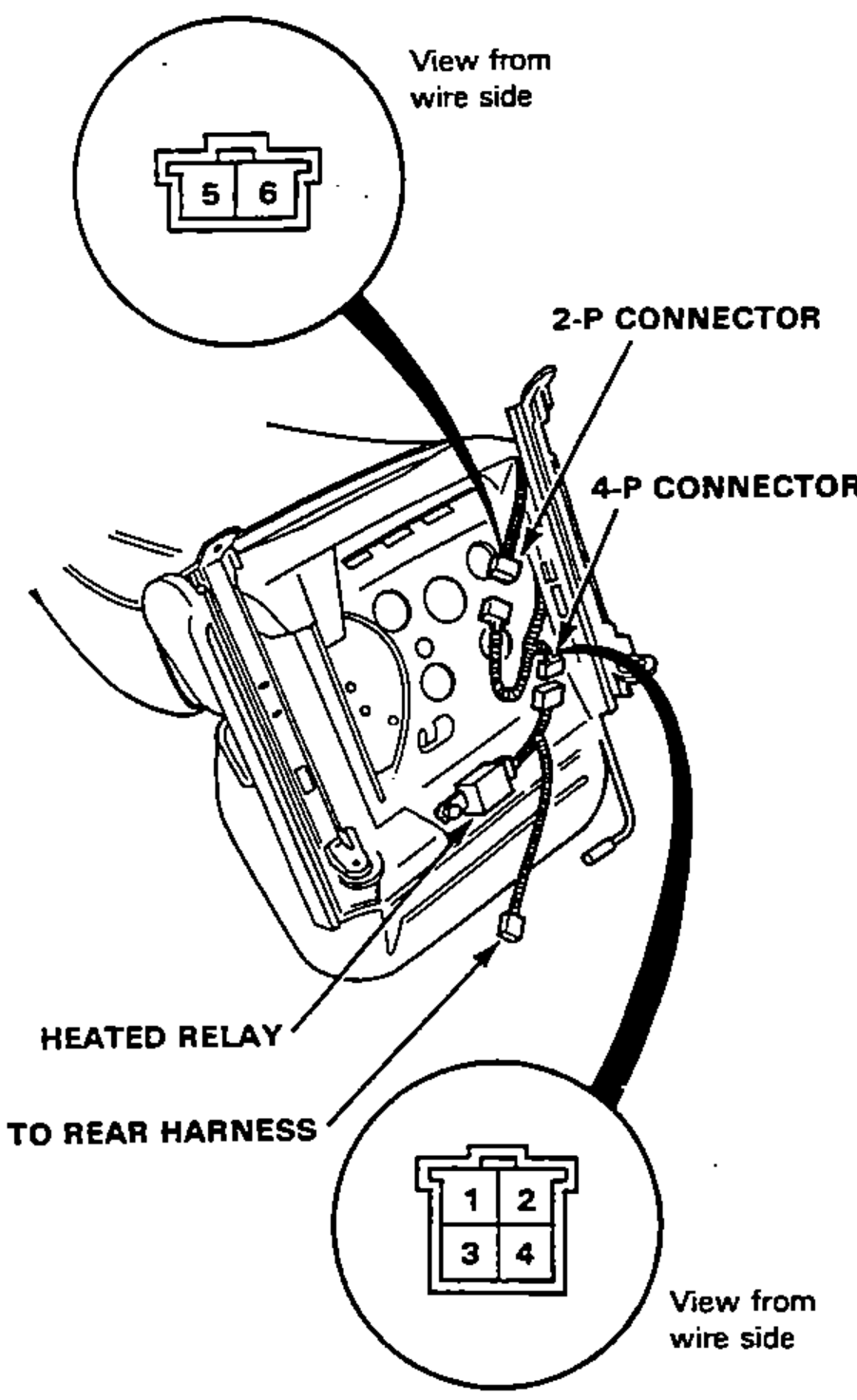

    Front seat underside showing the seat heater connectors to be disconnected. Insets show the 2-P connector (terminals 5, 6) and 4-P connector (terminals 1-4) viewed from the wire side. Left front seat shown.
  2. 2
    Check for continuity between the No.2 and No.3 terminals; between the No.5 and No.6 terminals (R x 10³ scale). There should be continuity.

Relay Test

Heated relay

  1. 1
    Remove the front seat, then remove the relay from the bottom of the seat.
  2. 2
    There should be continuity between the F and A; between E and B terminals when the battery is connected across the F and C terminals. There should be continuity between the F and B terminals when the battery is disconnected.

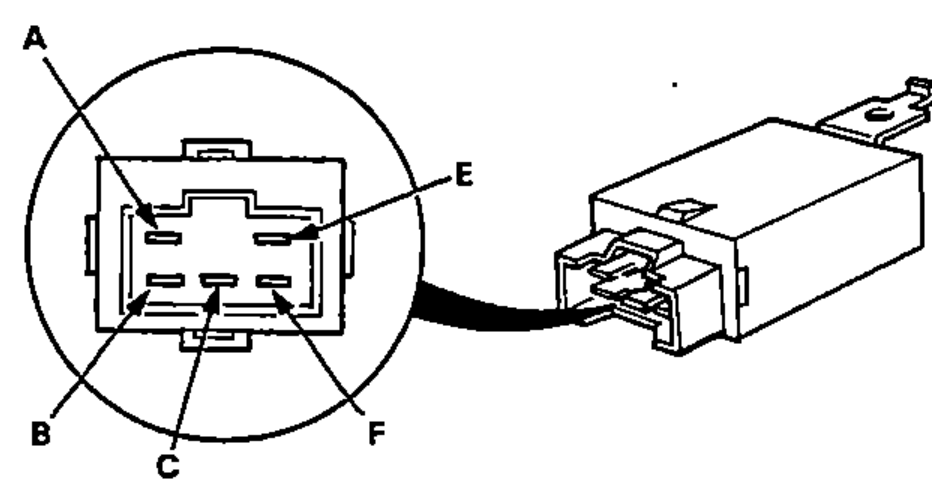

    Heated relay and its connector, showing terminal locations A, B, C, E, F.

Main relay

There should be continuity between the A and B terminals when the battery is connected across the C and D terminals. There should be no continuity when the battery is disconnected.
