Schematic Symbols / Wire Color Codes

16-3spec table

Legend page for Section 16 wiring diagrams: schematic symbols and wire-color abbreviations.

1

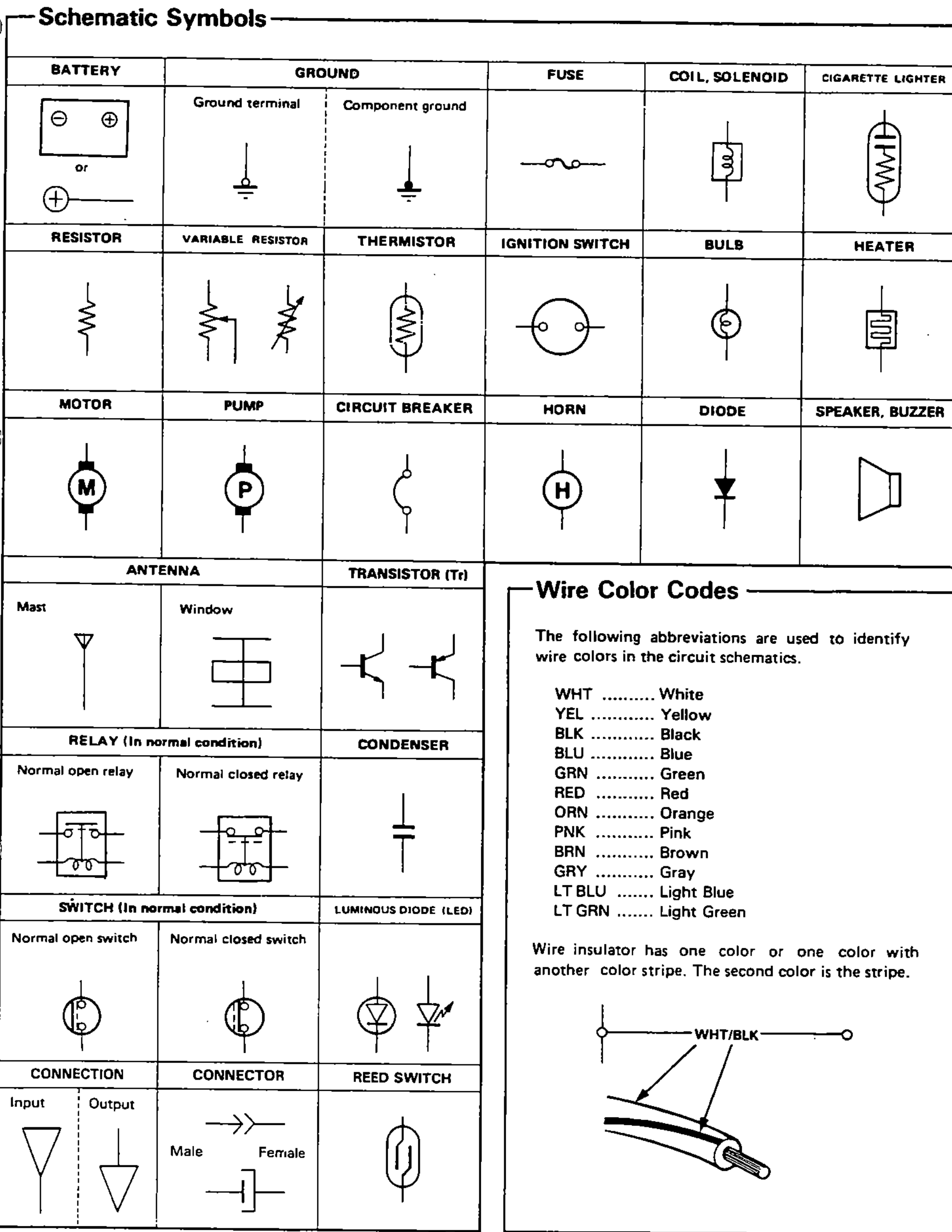

Schematic symbols used in the circuit diagrams. Symbols shown: BATTERY; GROUND (Ground terminal, Component ground); FUSE; COIL, SOLENOID; CIGARETTE LIGHTER; RESISTOR; VARIABLE RESISTOR; THERMISTOR; IGNITION SWITCH; BULB; HEATER; MOTOR; PUMP; CIRCUIT BREAKER; HORN; DIODE; SPEAKER, BUZZER; ANTENNA (Mast, Window); TRANSISTOR (Tr); RELAY (Normal open relay, Normal closed relay); CONDENSER; SWITCH (Normal open switch, Normal closed switch); LUMINOUS DIODE (LED); CONNECTION (Input, Output); CONNECTOR (Male, Female); REED SWITCH.

Wire Color Codes

The following abbreviations are used to identify wire colors in the circuit schematics.

WHT

ColorWhite

YEL

ColorYellow

BLK

ColorBlack

BLU

ColorBlue

GRN

ColorGreen

RED

ColorRed

ORN

ColorOrange

PNK

ColorPink

BRN

ColorBrown

GRY

ColorGray

LT BLU

ColorLight Blue

LT GRN

ColorLight Green

2
Wire insulator has one color or one color with another color stripe. The second color is the stripe (example: WHT/BLK).
