Lighting Relay Test / DIM-DIP Resistor Test

16-101prose procedure
  1. 1
    Remove the lighting relay.
  2. 2
    There should be continuity between the A and B terminals when the battery is connected to the C and D terminals. There should be no continuity when the battery is disconnected.

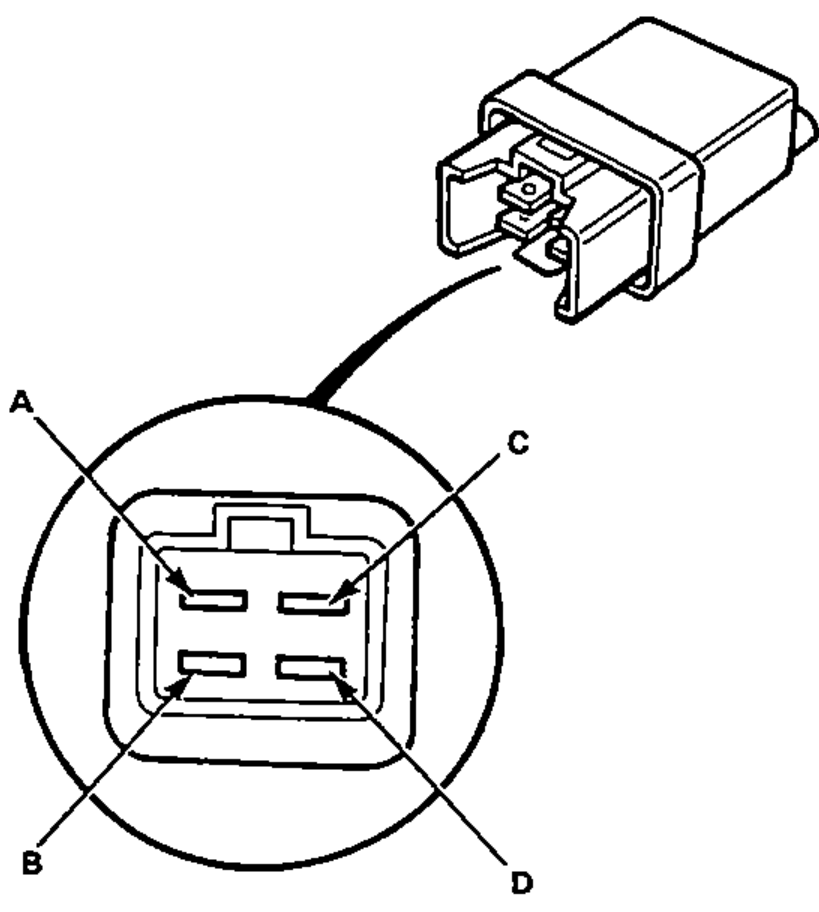

    Lighting relay shown with an enlarged circular terminal-side view of the 4-terminal connector. Terminals A and C on top row, B and D on bottom row.

DIM-DIP Resistor Test

  1. 1
    Disconnect the 3-P connector from the resistor.

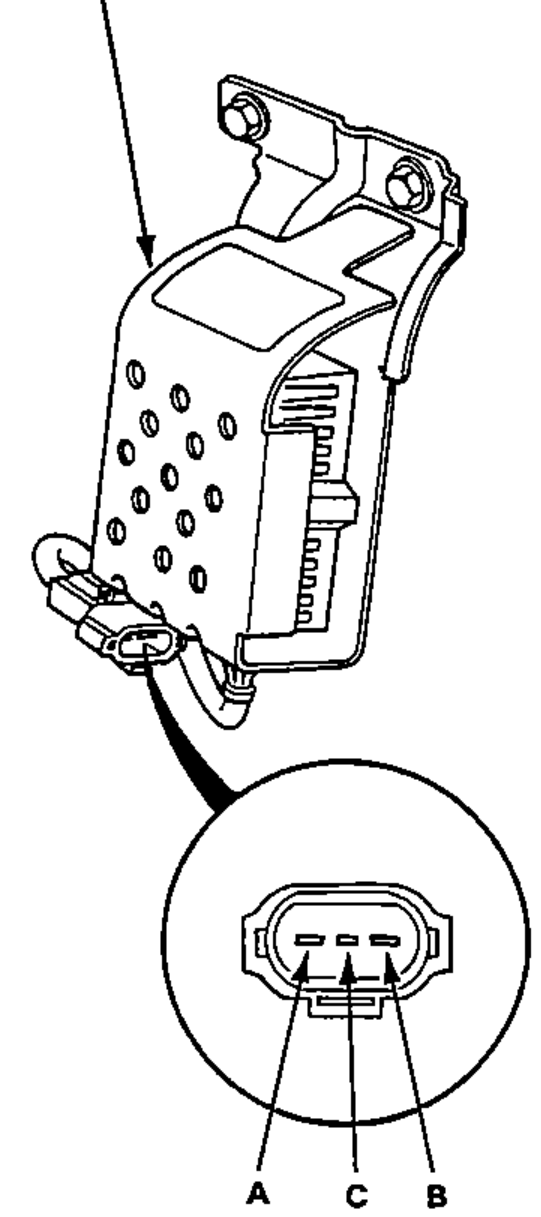

    Dim-Dip resistor illustration (located left side, engine compartment) with an enlarged circular terminal-side view of the 3-terminal connector. Terminals A, C, B.
  2. 2
    There should be continuity between A and C; between B and C terminals.
    Internal schematic of the Dim-Dip resistor: two resistors, one from terminal A and one from terminal B, both joined to terminal C.
