Turn Signal/Hazard Flasher System - Hazard Switch Removal / Hazard Switch Test

16-112prose procedure

Terminal G (marked G*) is European model only. Connector terminal order differs between LHD and RHD hazard switches.

Hazard Switch Removal

  1. 1
    Remove the steering wheel then remove the column covers.

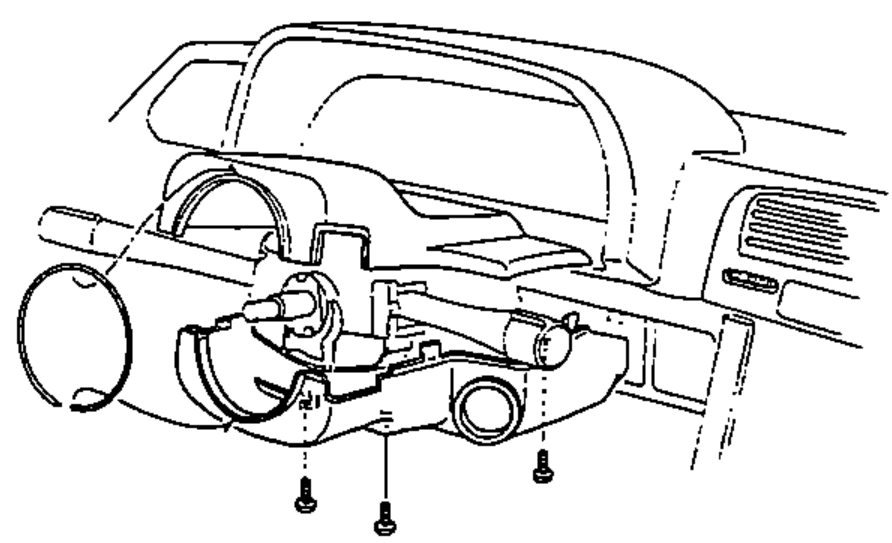

    Steering column with the column covers removed, showing the combination/hazard switch area with mounting screws indicated.
  2. 2
    Disconnect the 7-P connector, then remove the switch from the combination switch by releasing the 2 mounting screws.

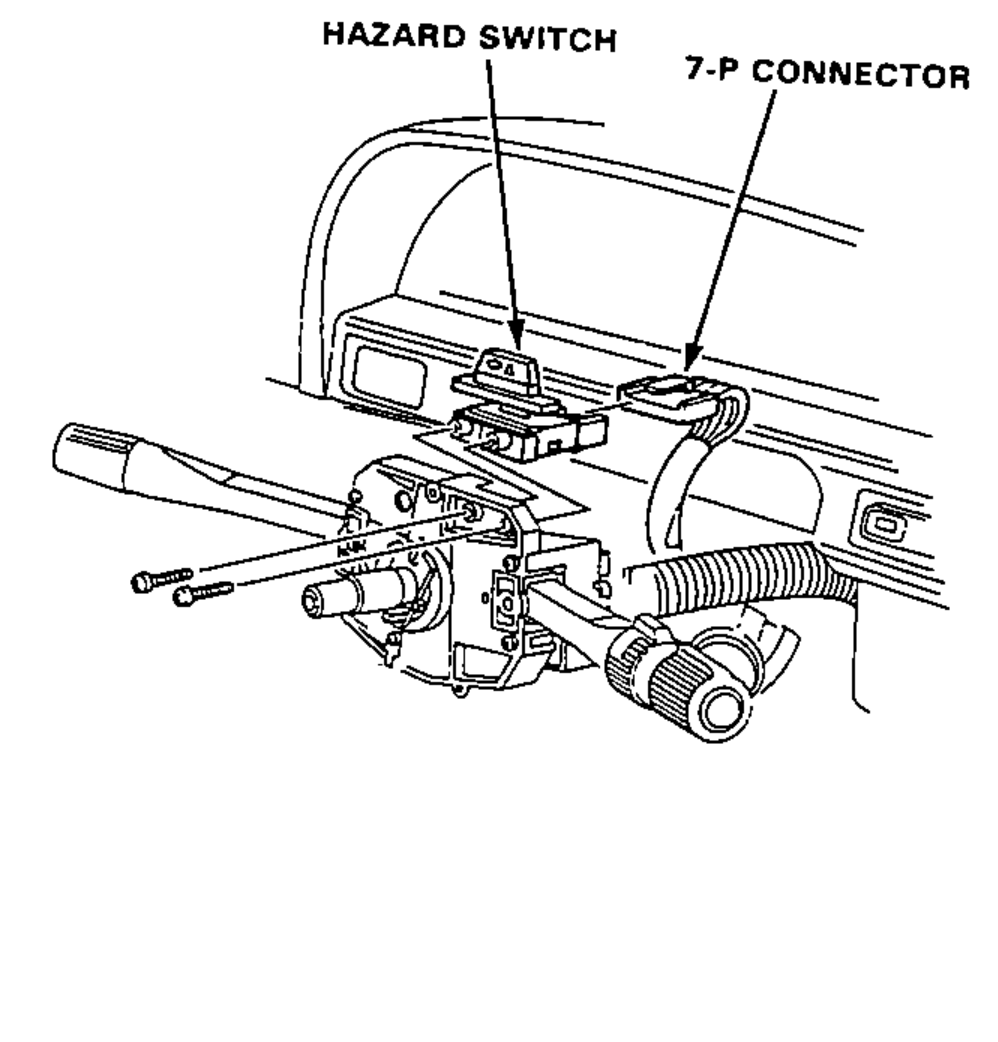

    Underside of the steering column showing the hazard switch and its 7-P connector to be disconnected, with the combination switch and mounting screws.

Hazard Switch Test

  1. 1
    Remove the hazard switch.
  2. 2
    Check for continuity between the terminals in each switch position according to the table.

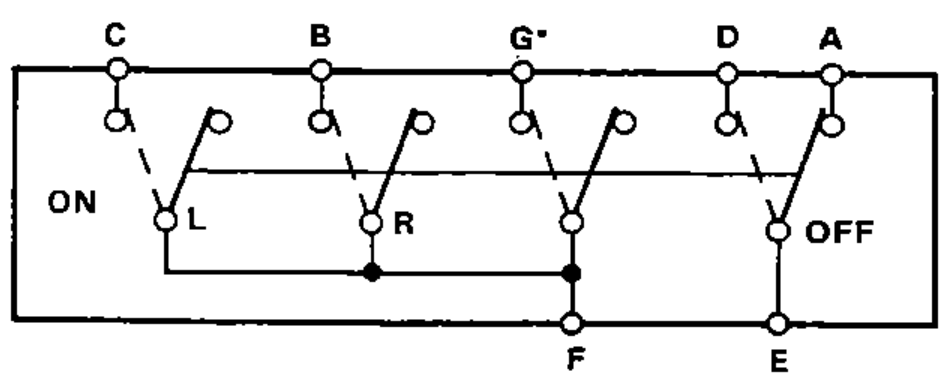

    Internal contact schematic of the hazard switch showing terminals C, B, G*, D, A across the top and F, E at the bottom, with the ON and OFF positions and the L/R turn contacts.
OFF
Terminals with continuityA - E
ON
Terminals with continuityB - C, D - E, F - G
