Charging System - Charge Warning Light Test

16-57prose procedure

Charge Warning Light Test

  1. 1
    Turn the ignition switch on. The charge warning light should come on. If it does not come on, unplug the alternator connector and short the pin of the L (WHT/BLU) terminal to ground.

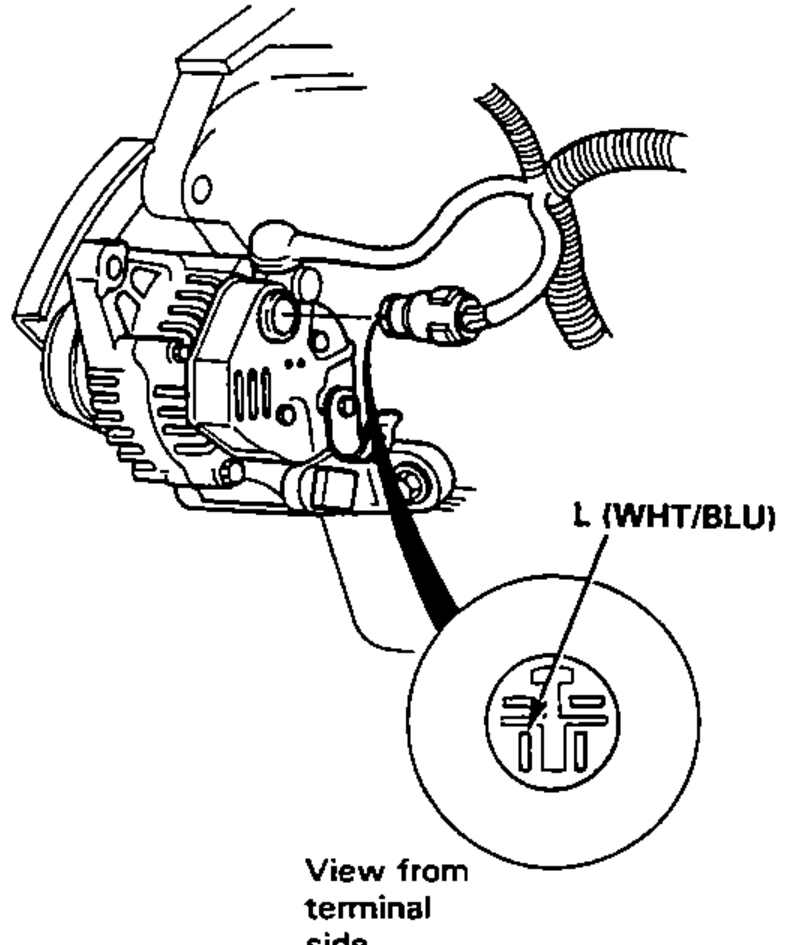

    Alternator with its connector, and an inset showing the connector viewed from the terminal side identifying the L (WHT/BLU) terminal pin used to short to ground during the test.
  2. 2
    Start the engine and let it idle. The charge warning light should go off. If it stays on this time, check the alternator and regulator (see page 16-58).
