Honda CRX silhouetteCRX

Washer Motor Test

16-161prose procedure
  1. 1
    Remove the front bumper and disconnect the 2-P connector from the washer motor.

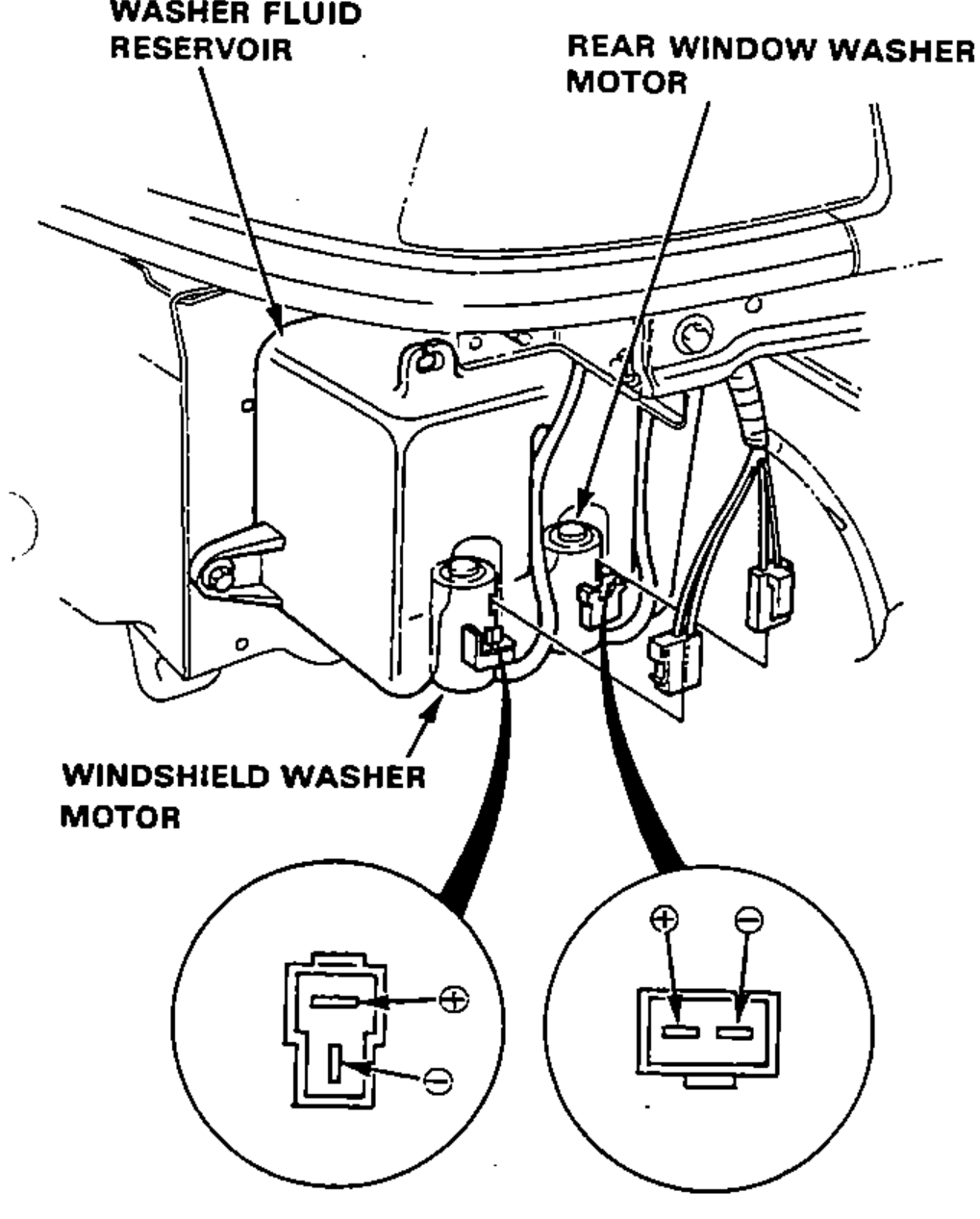

    Left illustration: washer fluid reservoir area showing the windshield washer motor and rear window washer motor mounted on the reservoir, with two detail circles of the 2-P connector terminals marked (+) and (-).
  2. 2
    Test either washer motor operation by connecting battery positive to the (+) terminal and negative to the (-) terminal.
    If the motor fails to run smoothly, replace it.
    If the motor runs smoothly but little or no washer fluid is pumped, check for disconnected or blocked washer-hose, or clogged pump outlet in the motor.

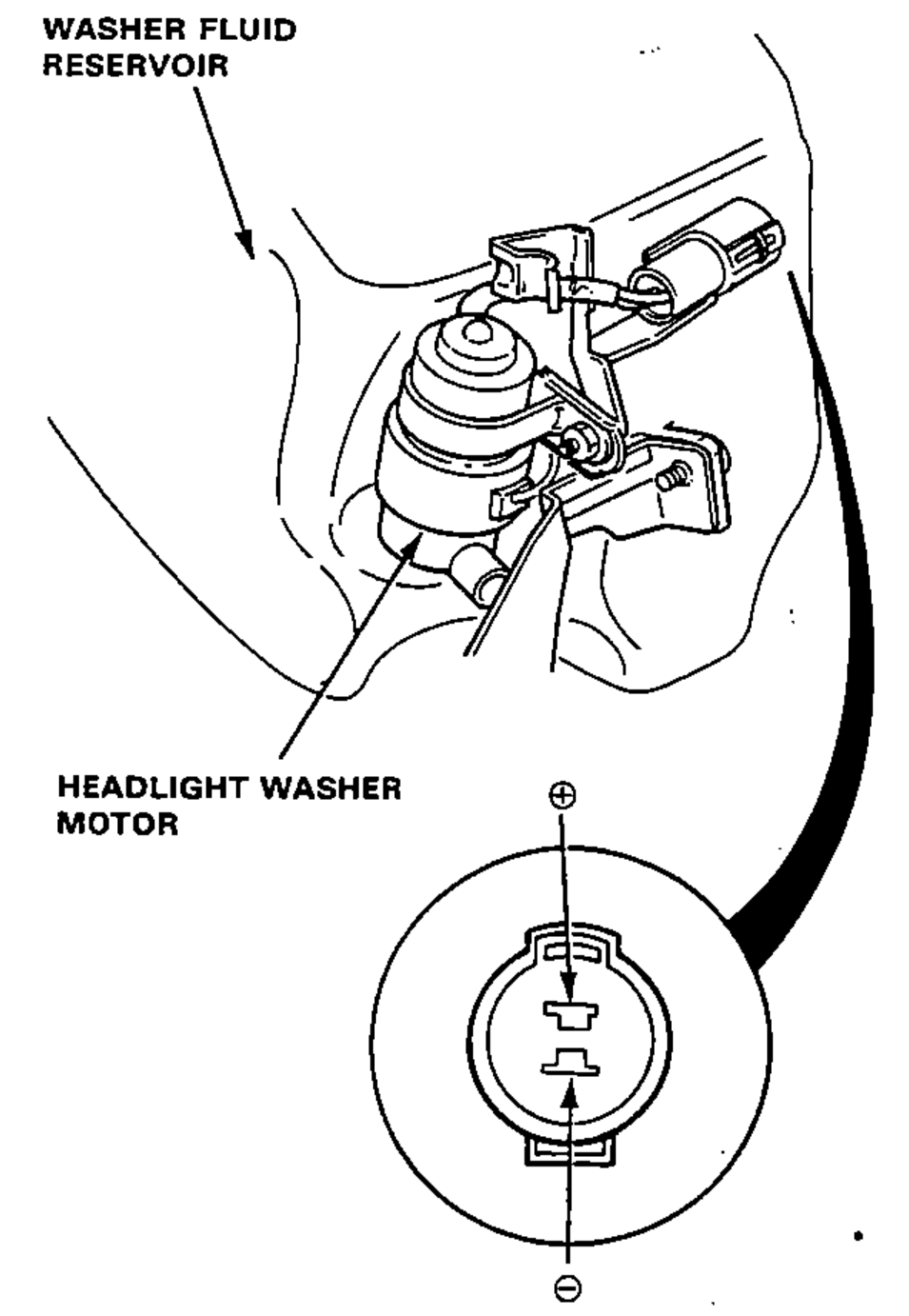

    Right illustration: headlight washer motor mounted on the washer fluid reservoir, with a detail circle of the connector terminals marked (+) and (-).
