Rear Window Wiper Motor Replacement / Headlight Washer Switch Test

16-159prose procedure
  1. 1
    Remove the hatch trim panel.
  2. 2
    Remove the trim cover, nut, wiper arm, special nut, special washer and the outside rubber seal.

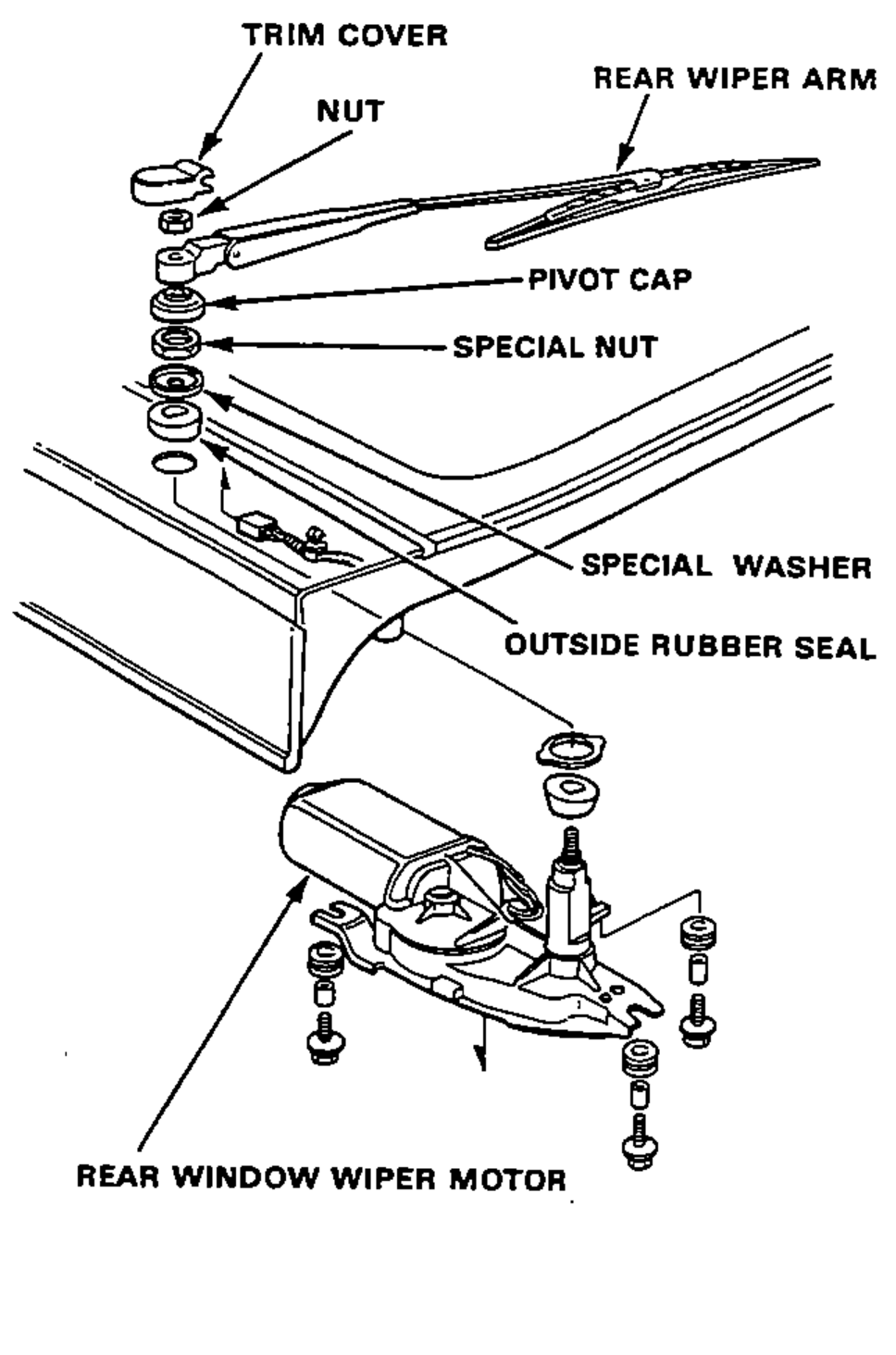

    Exploded view of the rear window wiper assembly at the hatch, showing the wiper arm, trim cover, mounting hardware and the rear window wiper motor with its three mount bolts.
  3. 3
    Disconnect the 4-P connector from the wiper motor.
  4. 4
    Remove the 3 mount bolts and the wiper motor.

Headlight Washer Switch Test

  1. 1
    Remove the dashboard lower panel. Push out the switch from behind the instrument panel, then disconnect the 2-P connector from the switch.

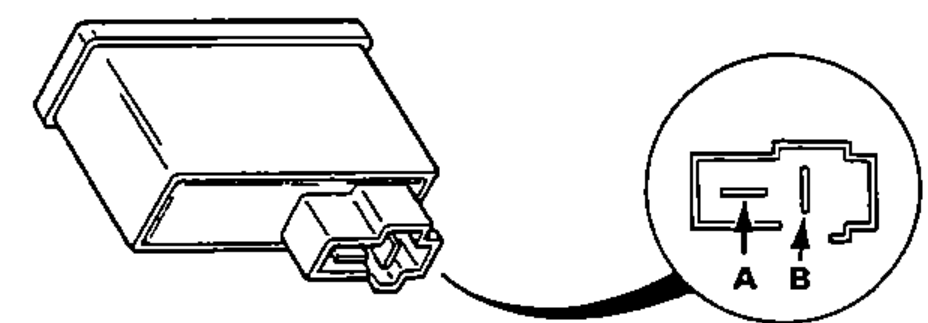

    Headlight washer switch with its 2-P connector disconnected, and a detail circle showing the two switch terminals labelled A and B.
  2. 2
    Check for continuity between the terminals according to the table.
OFF
Terminal A
Terminal B
ON
Terminal AO———
Terminal B———O
