Brake Lights - Circuit Diagram / Test
16-108wiring diagramCircuit Diagram
Wiring Schematic
Components (7)
BatteryMain fuse box (No.31 60A, No.35 15A)HornsBrake light switchL. brake light (21W)R. brake light (21W)Ground G511/G551
Connections (7)
Battery
Battery:+Main fuse box (No.31 60A, No.35 15A):No.31/No.35??
Main fuse box (No.31 60A, No.35 15A)
Main fuse box (No.31 60A, No.35 15A):No.35Brake light switch:BWhite with Green stripe
Main fuse box (No.31 60A, No.35 15A):No.35HornsWhite with Green stripe
Brake light switch
Brake light switch:AL. brake light (21W)Green with White stripe
Brake light switch:AR. brake light (21W)Green with White stripe
L. brake light (21W)
L. brake light (21W)Ground G511/G551Black
R. brake light (21W)
R. brake light (21W)Ground G511/G551Black
Test
- 1If the brake lights do not go on, check the No.35 (15A) fuse in the main fuse box, and the brake light bulbs in the taillight assembly.

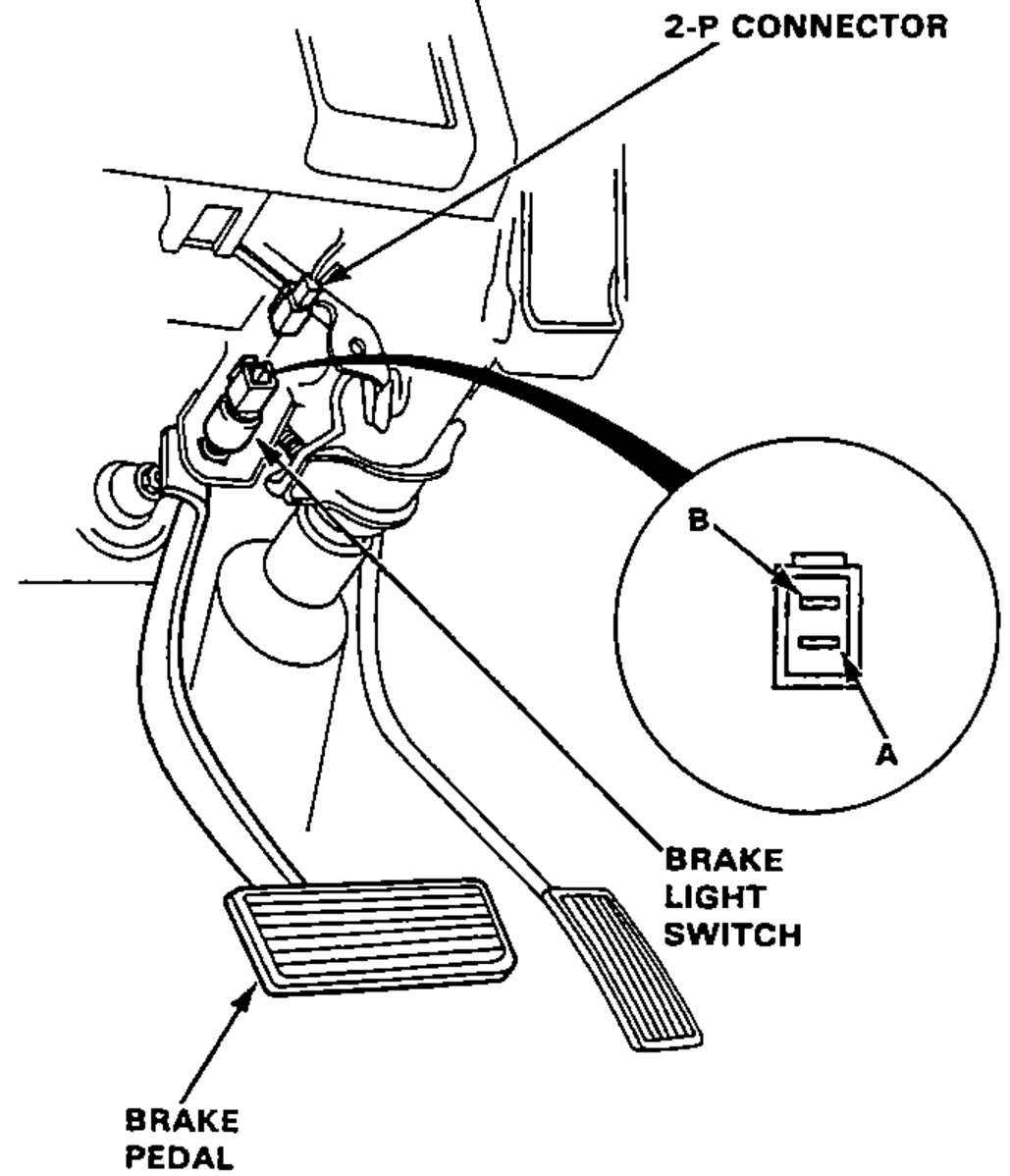

- 2If the fuse and bulbs are OK, disconnect the 2-P connector from the brake light switch.
- 3Check for continuity between the A and B terminals. There should be continuity with the brake pedal pushed.
