Windshield Wiper Motor Replacement / Rear Window Wiper Motor Test

16-158prose procedure

Wipers/Washers

Windshield Wiper Motor Replacement

1

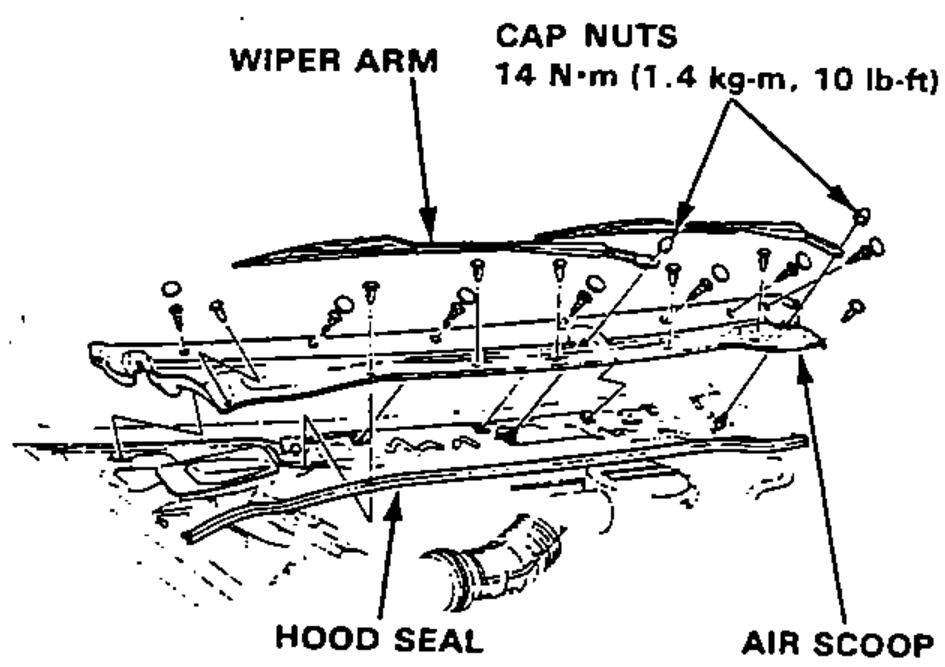

Remove the cap nuts and the wiper arms.
2
Remove the hood seal and air scoop by prying off the trim clips and removing the screws.
3

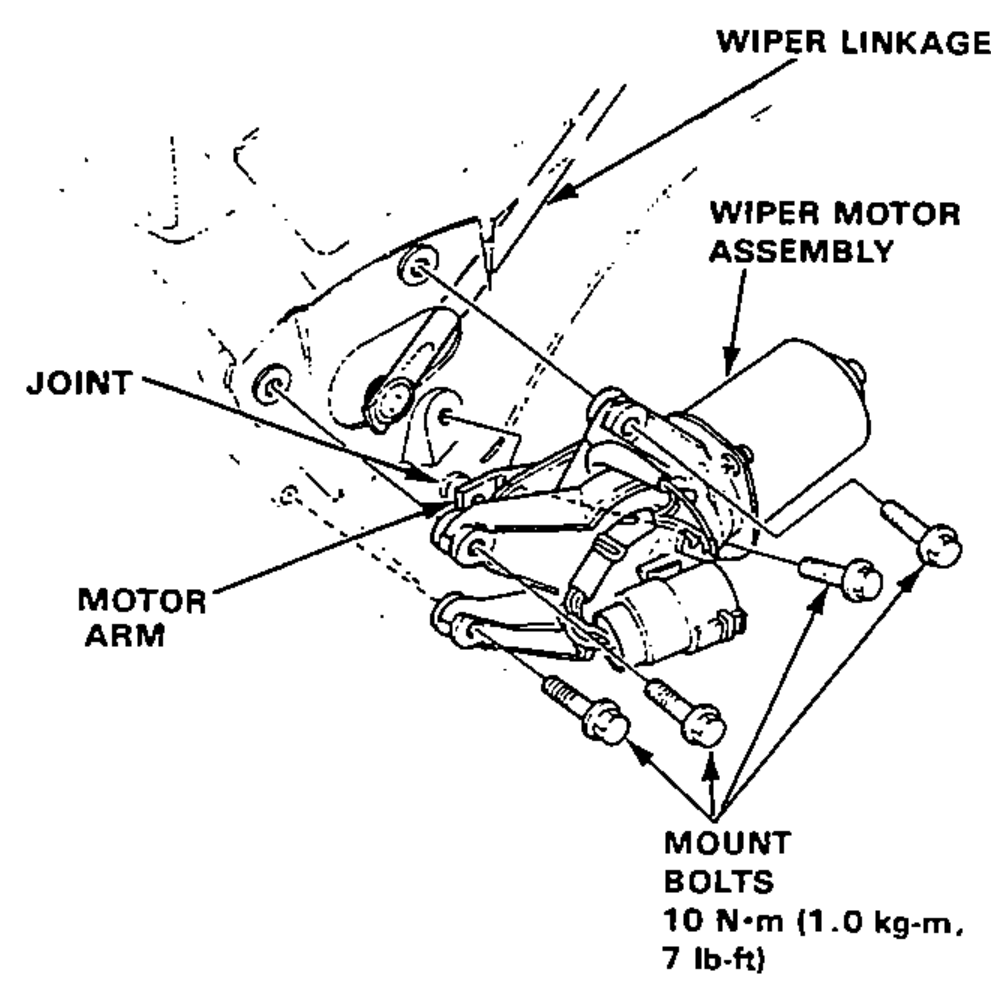

Pry the wiper linkage off the motor arm with a screw driver.
4
Disconnect the 5-P connector from the wiper motor assembly, then remove the 4 mount bolts and the wiper motor assembly.
5
Install the wiper motor assembly in the reverse order of removal.

Specification	Value
Cap nuts	14N·m
Mount bolts	10N·m

Cap nuts

14N·m

Mount bolts

10N·m

Rear Window Wiper Motor Test

1

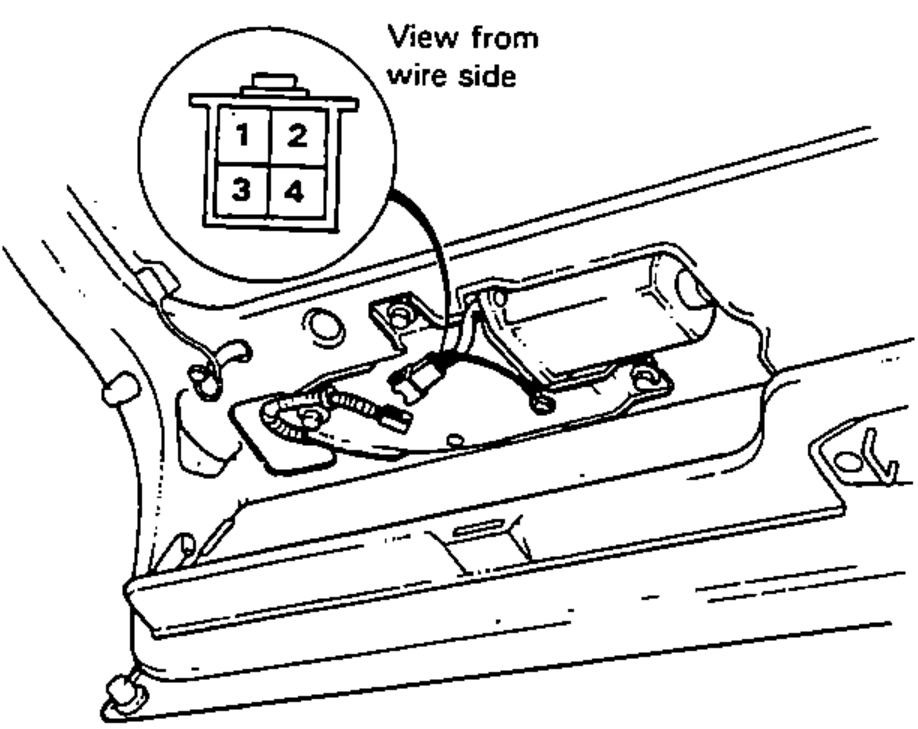

Remove the hatch trim panel.
2
Disconnect the 4-P connector.
3
Test wiper motor operation by connecting battery positive wire to the No.2 terminal and negative to the No.4 terminal.
4
If the motor fails to run smoothly, replace it.
5
Check for continuity between the terminals according to the table.

Wiper Blade	Terminals with continuity (1, 2, 3)
At park position	2-3
At center position	1-3

At park position

Terminals with continuity (1, 2, 3)2-3

At center position

Terminals with continuity (1, 2, 3)1-3
