Ignition Coil Replacement

16-53prose procedure
  1. 1
    With ignition switch OFF, remove the distributor cap and cap seal, then remove the leak cover.

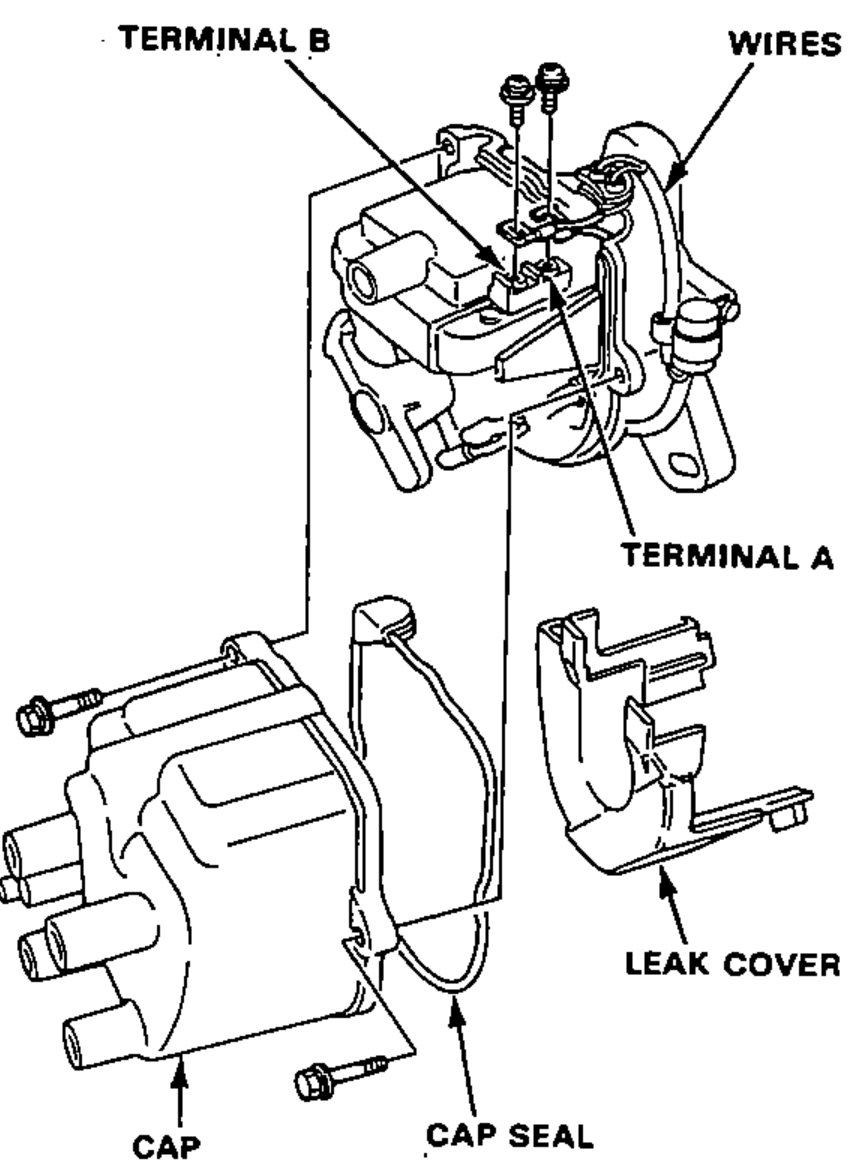

    Exploded view of the distributor with the cap, cap seal and leak cover removed, showing the BLK/YEL and WHT/BLU wires at terminals A and B and the two screws.
  2. 2
    Remove the 2 screws to disconnect the BLK/YEL and WHT/BLU wires from the terminals A and B respectively.
  3. 3
    Remove the 4 screws and slide the ignition coil out of the distributor housing.

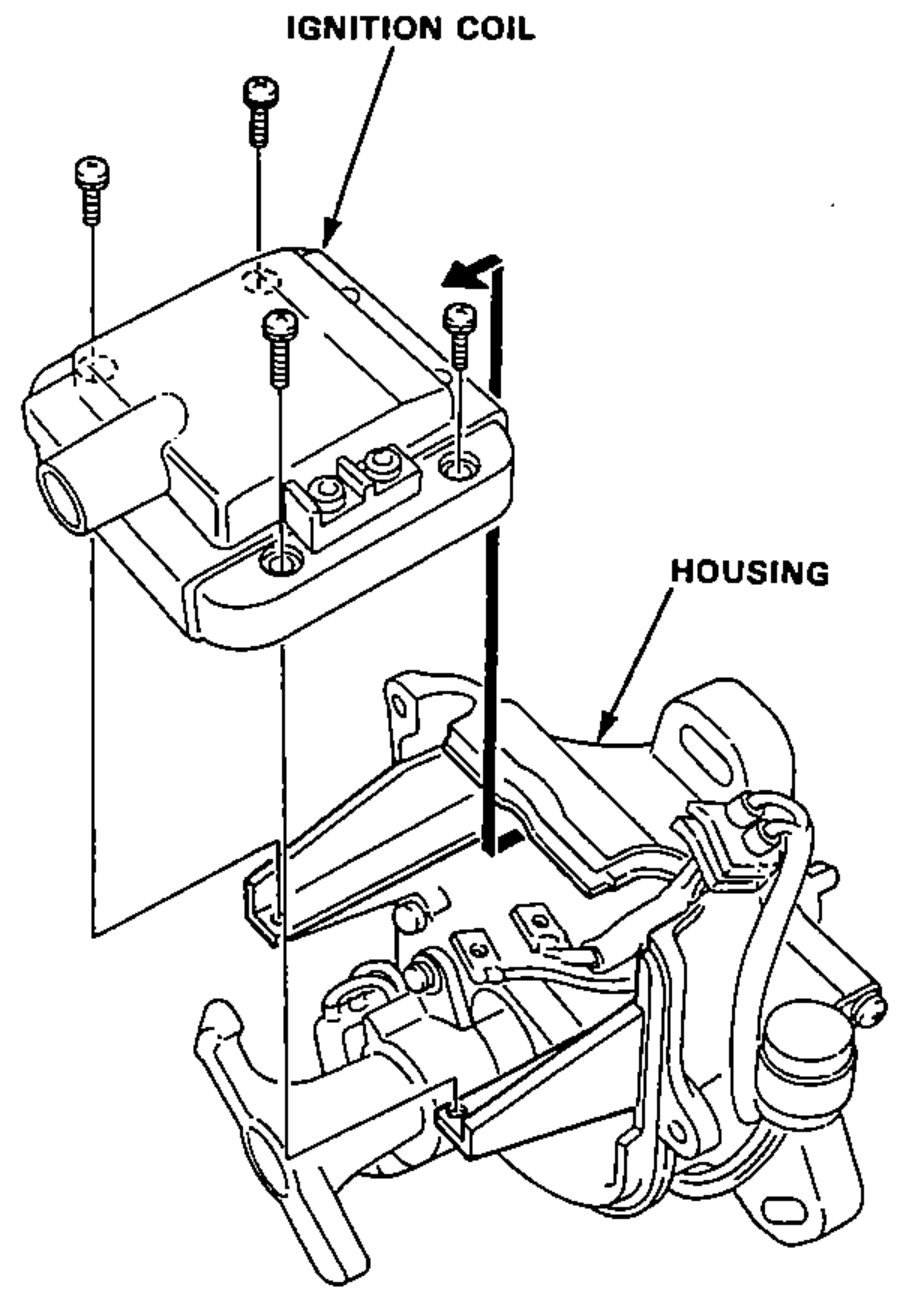

    View of the ignition coil being slid out of the distributor housing after removing the 4 screws.
