Power Door Mirrors - Switch Removal / Switch Test

16-126prose procedureUnverified

Switch Removal

1
Remove the dashboard lower panel.
2

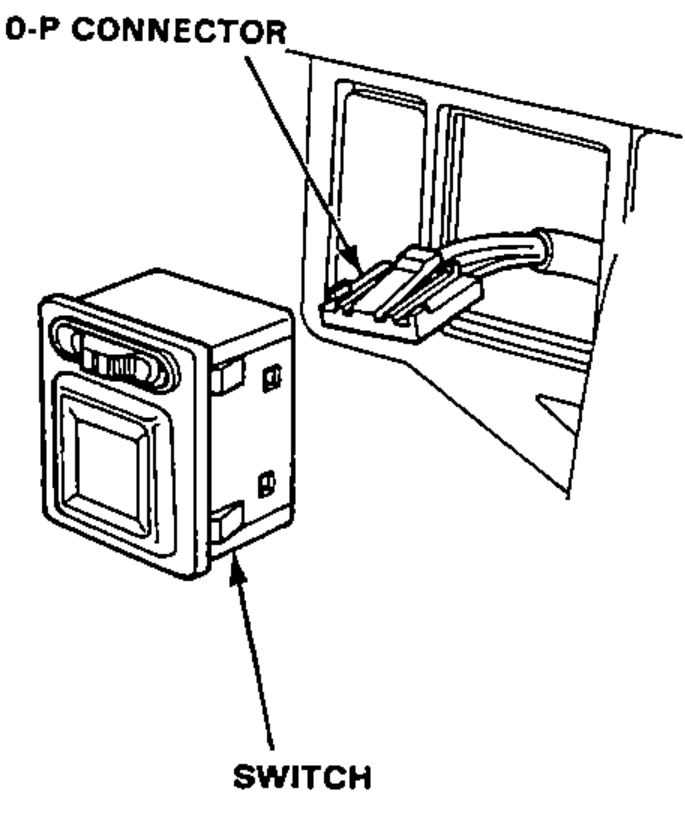

Push out the switch from behind the instrument panel, then disconnect the 10-P connector to remove the switch.

1
Remove the power door mirror switch from the instrument panel.
2

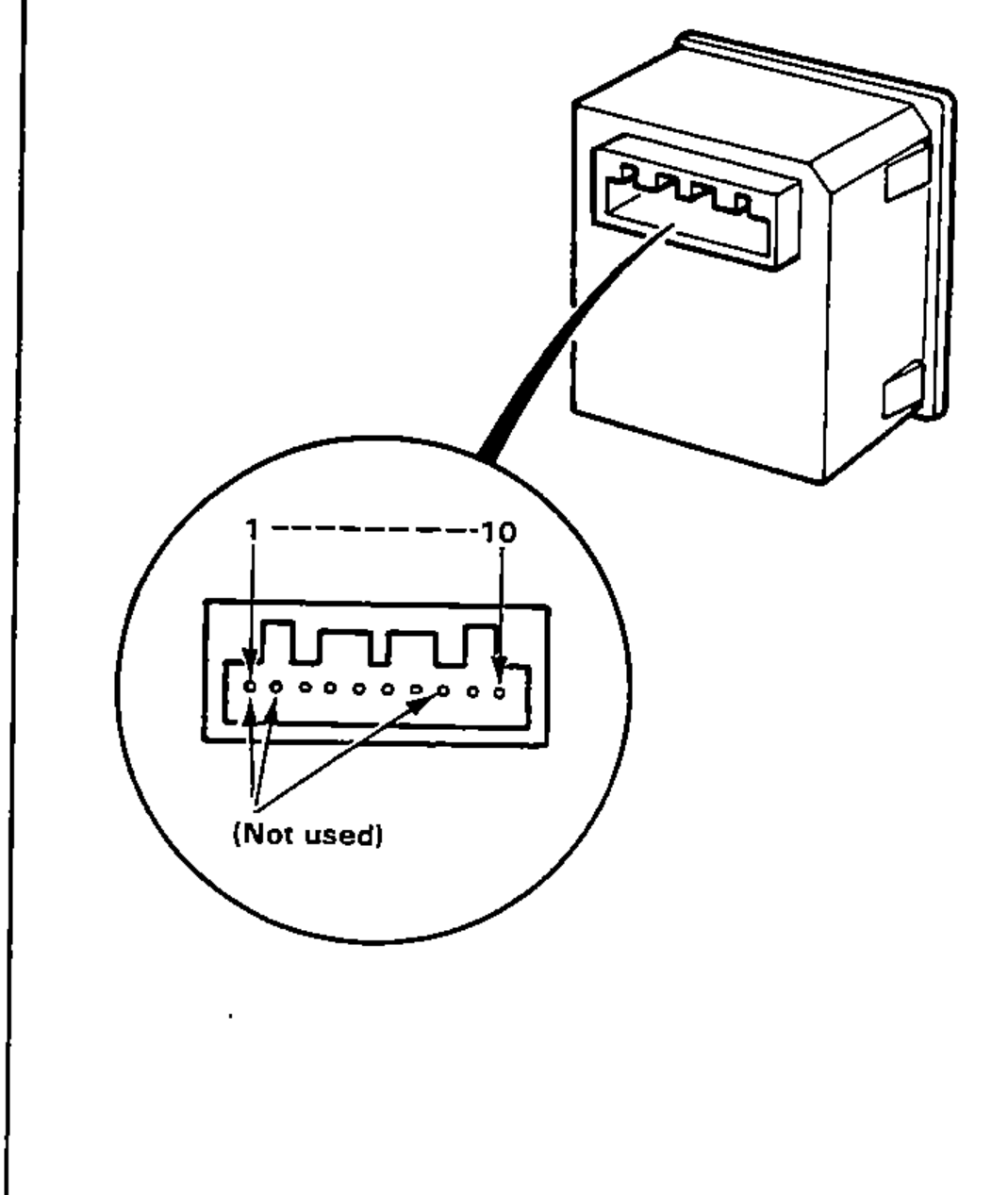

Check for continuity between the terminals in each switch position according to the table.

Position	Movement	3	4	5	6	7	9	10
R	OFF	O		O	O			O
R	UP			O			O
R	DOWN	O			O		O	O
R	LEFT			O	O		O	O
R	RIGHT	O						O
L	OFF		O	O		O		O
L	UP			O			O
L	DOWN		O			O	O	O
L	LEFT		O	O		O	O
L	RIGHT		O					O

MovementOFF

10O

MovementUP

MovementDOWN

10O

MovementLEFT

10O

MovementRIGHT

10O

MovementOFF

10O

MovementUP

MovementDOWN

10O

MovementLEFT

MovementRIGHT

10O

NOTE

In the continuity table, terminals marked O and joined by a line have continuity in that switch position.
