Relays and Control Unit Locations - Engine Compartment

16-4component photo

Engine-compartment relay/control-unit locations.

Engine Compartment

  1. 1

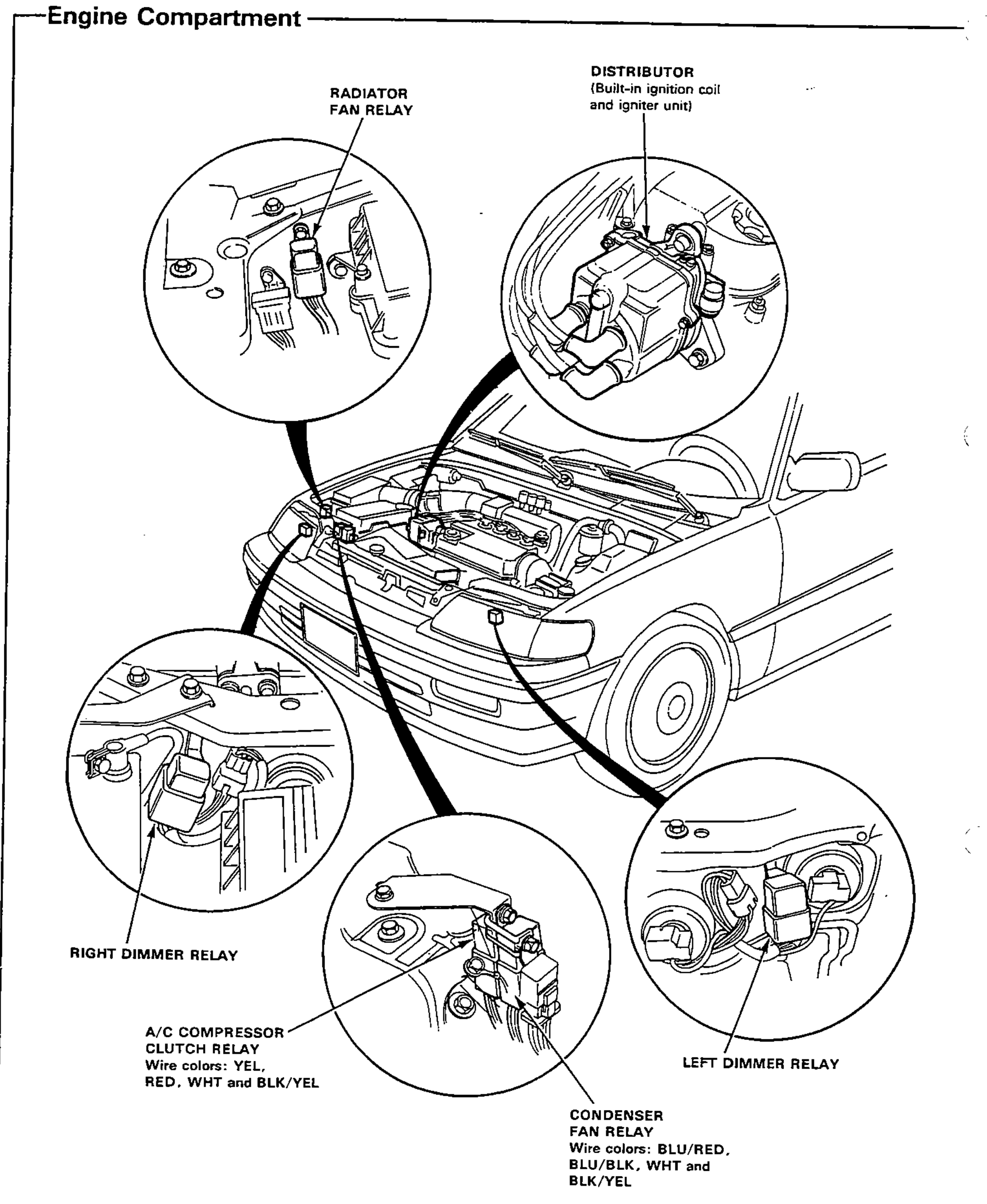

    Relay and control unit locations in the engine compartment.
    Front three-quarter illustration of the car with the hood open, showing the engine compartment. Six magnified circular detail views identify the mounting locations of relays and control units, each with a leader line to its position.
Component Location
1RADIATOR FAN RELAY()
2DISTRIBUTOR()
3RIGHT DIMMER RELAY()
4A/C COMPRESSOR CLUTCH RELAY()
5CONDENSER FAN RELAY()
6LEFT DIMMER RELAY()
