Cigarette Lighter - Replacement

16-122prose procedure

Replacement differs between Si model (illumination ring + bulb case) and Std model (thermal protector only).

Replacement

Si model:

  1. 1
    Remove the front console.
  2. 2
    Remove the 6 screws and the center instrument panel with the stereo radio/cassette player, then disconnect the 16-P connector, the mast antenna lead and the 4-P connector.
  3. 3
    Disconnect the thermofuse case from the socket end.
  4. 4
    Remove the ring nut and separate the cigarette lighter socket from the thermal protector.

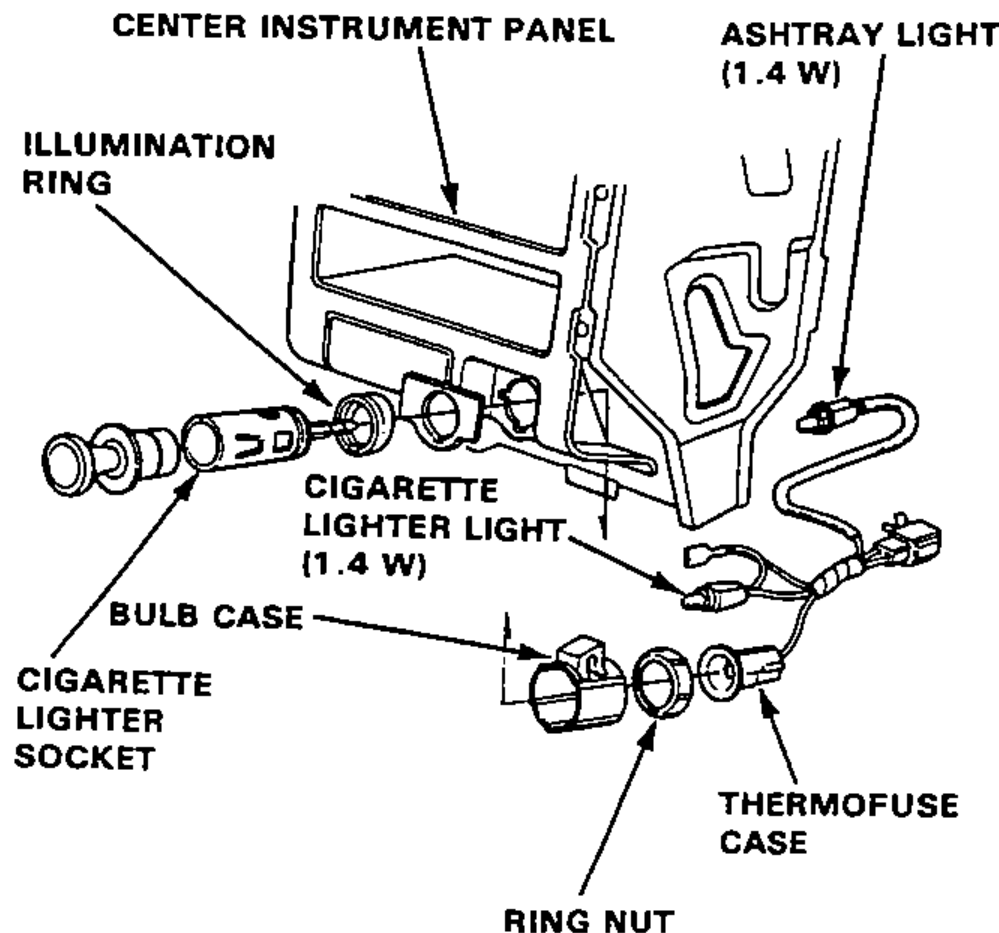

    Si model exploded view of the cigarette lighter assembly relative to the center instrument panel, showing the illumination ring, socket, bulb case, thermofuse case and ring nut.
  5. 5
    When installing the cigarette lighter, align each lug on the illumination ring and cigarette lighter socket with the groove in the hole, then position the bulb case on the thermal protector between the stoppers of the center panel.
  6. 6
    Make sure that the ground wire, bulb socket and thermofuse case are seated to the cigarette lighter assembly.

Std model:

  1. 1
    Remove the front console.
  2. 2
    Remove the 6 screws and the center instrument panel with the stereo radio/cassette player, then disconnect the 16-P connector, the mast antenna lead and the 2-P connector from the cigarette lighter.
  3. 3
    Disconnect the thermofuse case from the socket end.
  4. 4
    Remove the thermal protector and separate the cigarette lighter socket.

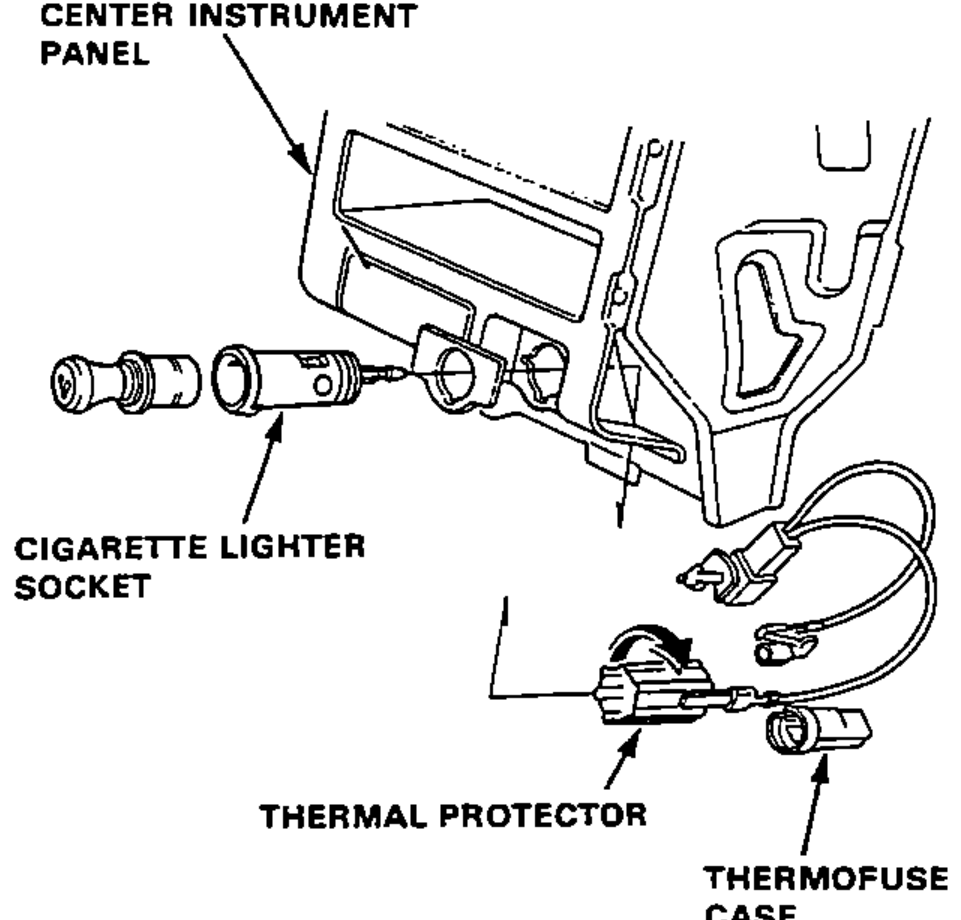

    Std model exploded view of the cigarette lighter assembly relative to the center instrument panel, showing the cigarette lighter socket, thermal protector and thermofuse case.
  5. 5
    When installing the cigarette lighter, align the lug on the cigarette lighter socket with the groove in the hole.
  6. 6
    Make sure that the ground wire, thermofuse case are seated to the cigarette lighter assembly.
