Starter Solenoid Test (continued) / Starter Replacement
16-37prose procedureTwo starter types covered: Nippon Denso (1.2 kW) and Mitsuba (1.4 kW).

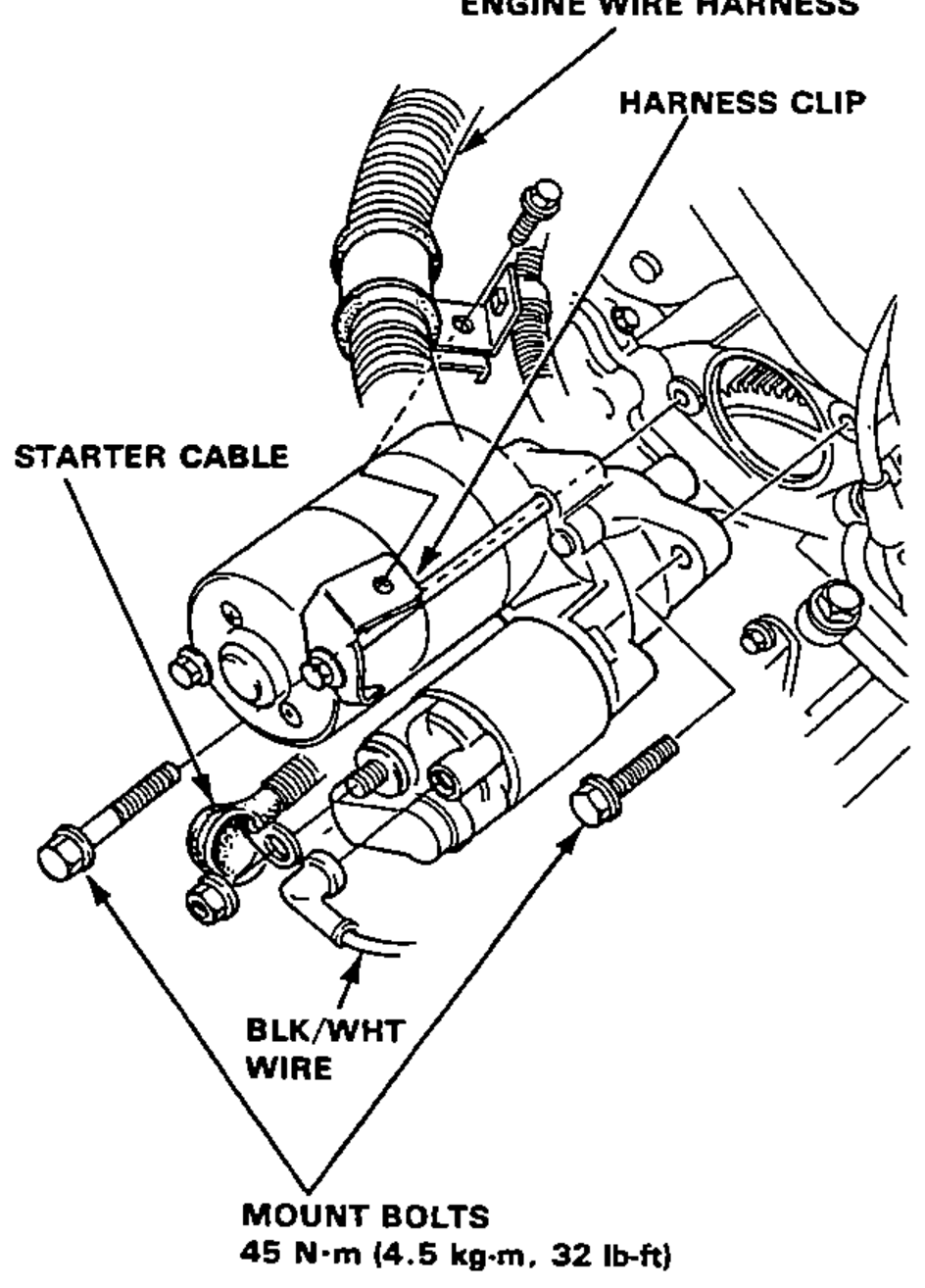

Starter Replacement
- 1Disconnect the ground wire from the battery negative (-) post.
- 2Remove the engine wire harness from the harness clip on the starter motor.
- 3Disconnect the starter cable from the B terminal on the solenoid, and the BLK/WHT wire from the S terminal.
- 4Remove the 2 bolts holding the starter, and remove the starter.
| Specification | Value |
|---|---|
| Mount bolts (tightening torque) | 45N·m |
Mount bolts (tightening torque)
45N·m
