Power Door Mirrors - Door Mirror Test / Door Mirror Replacement

16-127prose procedure

Door Mirror Test

  1. 1
    Remove the door trim panel, then disconnect the 3-P connector from the mirror.
  2. 2
    Test actuator operation:

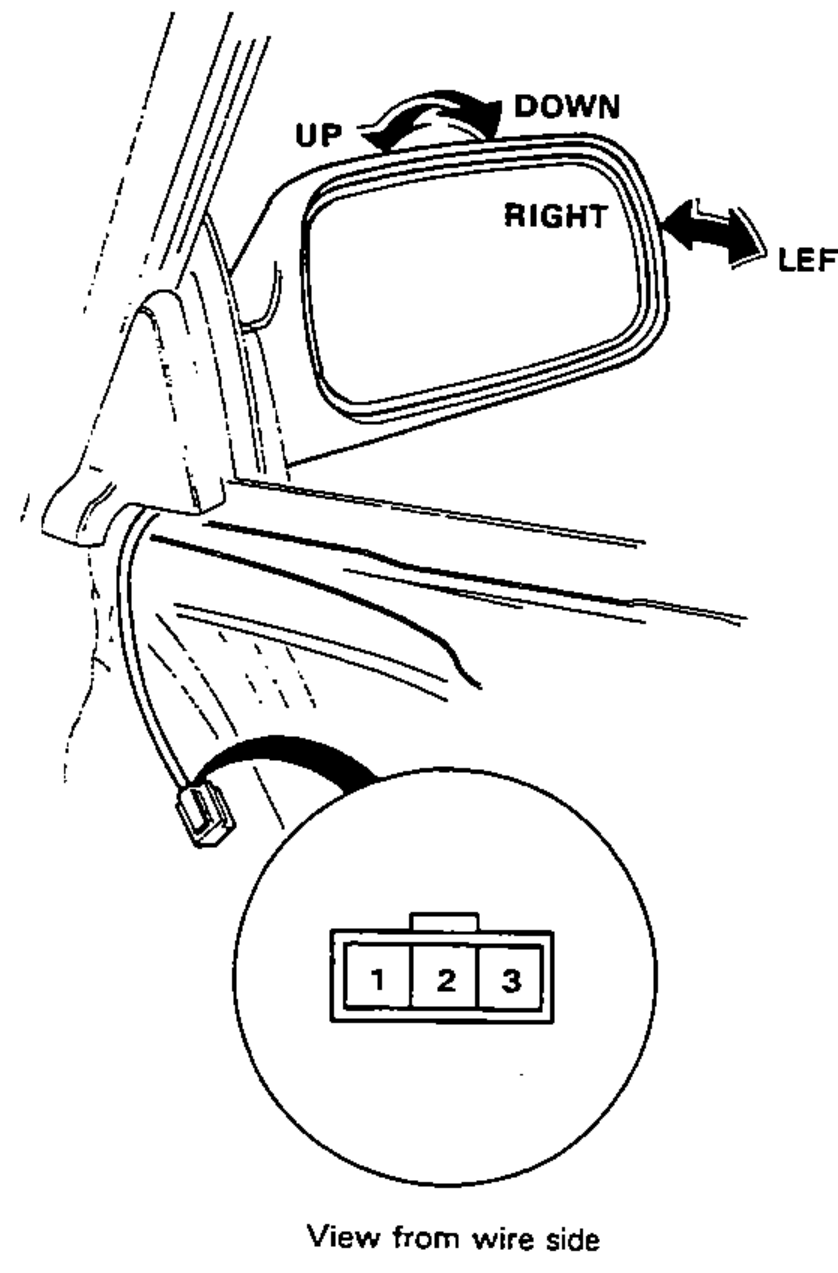

    Door mirror test illustration: the door mirror with movement arrows labelled UP, DOWN, RIGHT and LEFT, plus a magnified inset of the 3-P connector face (terminals 1, 2, 3) captioned 'View from wire side'.
  3. 3
    If the mirror fails to operate properly, replace it.

Door Mirror Replacement

  1. 1
    Remove the door trim panel, then disconnect the 3-P connector from the mirror.

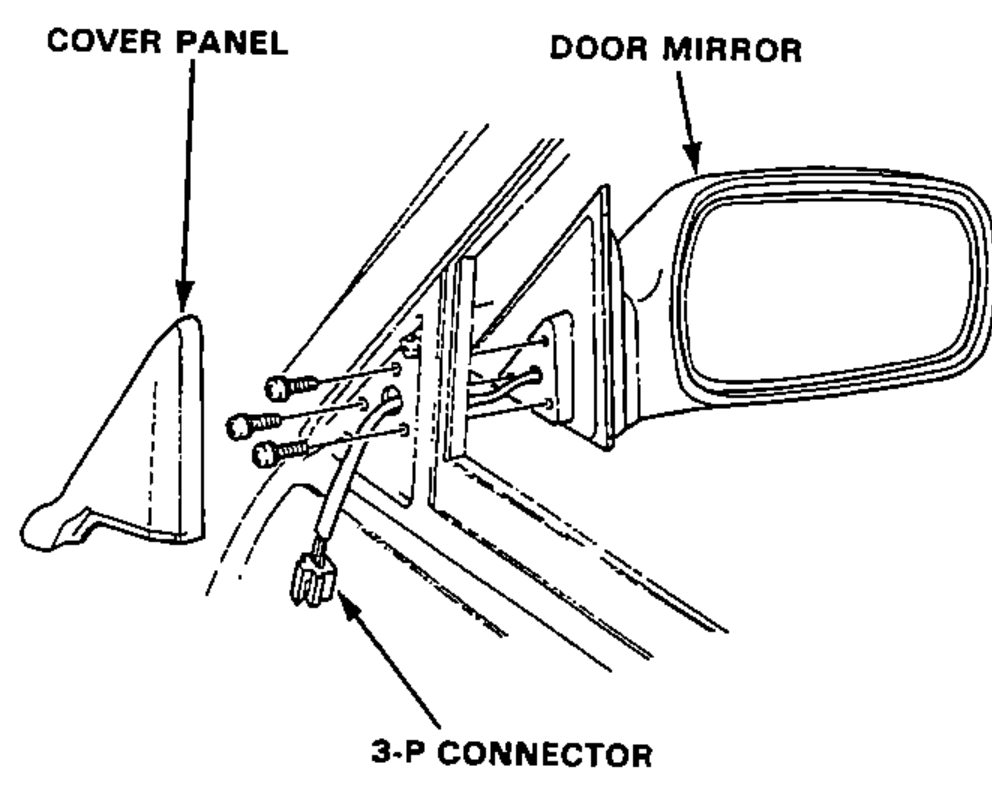

    Door mirror replacement illustration: the door mirror mounted on the door, with leader lines to the COVER PANEL, DOOR MIRROR and 3-P CONNECTOR; shows the mount screws exposed after prying the cover panel.
  2. 2
    Carefully pry out the cover panel with a flat tip screwdriver.
  3. 3
    While holding the mirror with one hand, remove its mount screws with the other.
